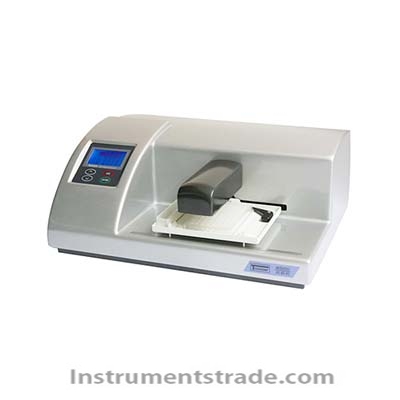

W5000 board washing machine

Product ID:SHLCxb019

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Brand NameSHTMKXYQ
    Payment TermsT/T, paypal
    Model NumberW5000
    Main features:
    1. Large-screen LCD display, all-chinese operating system, can store 40 groups of user washing procedure combination programs.
    2. Complete needle position control, automatic and continuous cleaning, and complete off-hand operation.
    3. Various cleaning parameters can be selected to meet various requirements of users.
    4. Fully automatic plate washing machine, standard 12 needles, optional 8 needles cleaning head.
    5. The position of the bottom can be adjusted and the position of normal cleaning and overflow cleaning can be adjusted.
    6. Vibration plate parameters can be selected to reduce the adhesion of bubbles or liquids on the hole wall.
    7. Waste liquid alarm system is more convenient.
    Technical parameters:
    Suitable for micro-orifice plate type: compatible with flat, u-shaped or v-shaped micro-orifice plate
    Washing solution inlet: 2 washing routes are standard, which can be extended to 4 washing routes
    Feeding method: it can enter the liquid through one channel, or after 1-1 ratio of two channels
    Distribution volume: the volume of lotion is adjustable from 50 to 3000 microliters, and the step is 50 microliters
    Feeding precision: 300 microliters of the whole plate, the coefficient of variation is less than 2%
    Residual fluid volume: < 2 microliters/hole
    Cleaning mode: normal cleaning, bottom cleaning, overflow cleaning
    Soaking time: 0-990s is optional, step by step 10s
    Repeat: 0-29 or unlimited
    Memory program group number: can store 40 groups of user washing procedure combination program.
