1 Sales VP TE-1000A micro vapor pressure tester, Manufacturer
Position: Home > > Industry specific instrument > Oil special analytical instrument > Steam pressure measuring instrument > VP TE-1000A micro vapor pressure tester for petroleum product testing

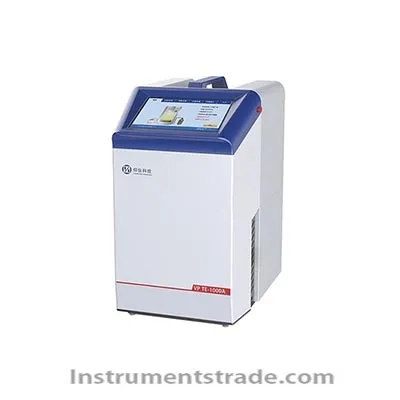

VP TE-1000A micro vapor pressure tester for petroleum product testing

Product ID:HZSYzqycdy009

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberVP TE-1000A
    Brand NameHANGZHOUYANGYI
    Payment TermsT/T, paypal
    Introduction:
    VP TE-1000A automatic fast micro-steam pressure measuring instrument is the core design concept of “precision and high efficiency” under the recommendation of “Increased and Efficient” as the core design concept under the recommendation of deep understanding of professional customer needs and comprehensive collection of users in various industries. Made. The instrument is suitable for chemical/petroleum/petrochemical applications and is used to accurately determine the vapor pressure of chemicals such as gasoline, aviation gasoline turbine fuel, crude oil, hydrocarbon solvents, and other light distillate petroleum products.
    Features:
    1. The first in China, superior performance
     2. Adopting the internationally advanced three-stage expansion method, the steam pressure test level is leading domestically.
    3. The key components are all international first-class brands, ensuring long-term stable operation of the instrument.
    4. No need for sample pre-processing, one-click operation to complete the experimental process
     5. Fully automated testing to eliminate errors introduced by manual operations
     6. Only 1ml sample volume is needed, and the test result can be obtained in 10 minutes at the earliest.
    7. Unique cleaning method, effectively control sample cross-contamination, improve detection efficiency and accuracy
    8. The measurement room is maintenance-free and can be used for high-intensity test tasks.
    9. User hierarchical management, can achieve different levels of account management control
    10. Professional design, simple and simple
    11. Professional industrial design, simple and generous
    Technical Parameters:
    1) Working environment: 5 ° C ~ 30 ° C, <85% RH;
    2) Temperature control range: 0 ° C ~ 100 ° C;
    3) Temperature stability: ± 0.1 ° C;
    4) Temperature accuracy: ± 0.1 ° C;
    5) Pressure detection range: 0kPa ~ 1000kPa;
    6) Pressure resolution (sensitivity threshold): 0.1 kPa;
    7) Repeatability: ≤0.3kPa (@37.8°C, 70kPa);
    8) Reproducibility: ≤ 0.7 kPa (@37.8 ° C, 70 kPa);
    9) Sample test amount: 1ml;
    10) Measurement chamber volume: 5ml;
    11) gas-liquid ratio: 0.02:1 to 4:1;
    12) Gas-liquid ratio accuracy: ≤ 5% (1:1 to 4:1);
    13) Interface: RS232*1, USB*4, network port*1
    14) Carrying method: portable
    15) Power module: 220VAC 50HZ
    16) Rated power: 150W
    17) Size: 225mm × 290mm × 390mm
         18) Weight: 11Kg
  • Introduction:
    VP TE-1000A automatic fast micro-steam pressure measuring instrument is the core design concept of “precision and high efficiency” under the recommendation of “Increased and Efficient” as the core design concept under the recommendation of deep understanding of professional customer needs and comprehensive collection of users in various industries. Made. The instrument is suitable for chemical/petroleum/petrochemical applications and is used to accurately determine the vapor pressure of chemicals such as gasoline, aviation gasoline turbine fuel, crude oil, hydrocarbon solvents, and other light distillate petroleum products.
