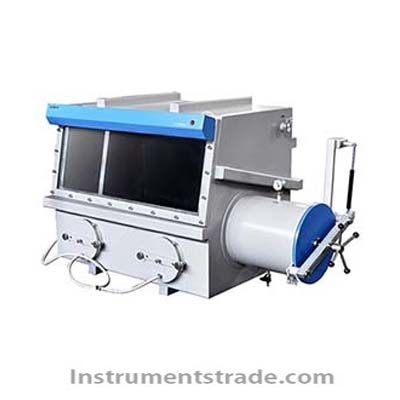

Introduction: VGB-4 stainless steel vacuum glove box is made of 3mm thick 304 stainless steel. Stainless steel ribs are cast on the shell to prevent deformation of the stainless steel shell. The vacuum degree can reach 0.5torr, creating a clean, oxygen-free experimental environment. . Therefore, it is widely used in chemical, semiconductor, lithium battery and other experimental research. Features: 1, the overall use of 304 stainless steel (thickness 3mm), the box welded with ribs, so that the chamber to achieve high vacuum when the box will not be deformed. 2. There is a 1500W power strip in the box, which is connected with the three-pin plug on the outer wall of the box. When the external power supply, the power strip can supply power to the instrument inside the glove box. 3. There are two KF25 interfaces and three KF40 interfaces behind the main cavity. 4. There is a vacuum pressure gauge, a ball valve, and a KF25 interface on the front chamber. 5, has passed CE certification. Technical Parameters: Foreroom: Ø360mm×600mm The main cavity: 1120mm × 800mm × 1000mm Foreroom vacuum: 0.05torr The main cavity vacuum: 0.5torr Maximum positive pressure: 1.1atm (If the pressure in the glove box is higher than 1.1atm, do not operate rubber gloves) Inert gas box retention time: >12h Glove hole diameter: Ø203mm Weight: 360kg Optional accessories 1, vacuum pump 2. Flapper valve
Introduction: VGB-4 stainless steel vacuum glove box is made of 3mm thick 304 stainless steel. Stainless steel ribs are cast on the shell to prevent deformation of the stainless steel shell. The vacuum degree can reach 0.5torr, creating a clean, oxygen-free experimental environment. . Therefore, it is widely used in chemical, semiconductor, lithium battery and other experimental research.
