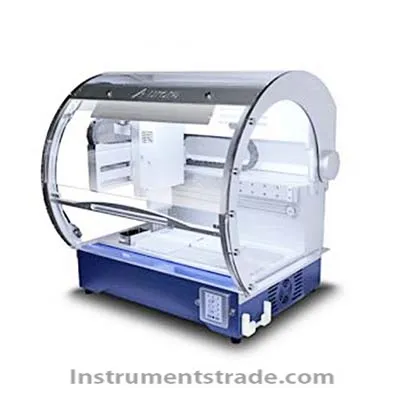

Versa 10 automatic nucleic acid extractor workstation for Nucleic acid extraction from animal and plant samples

Product ID:SHFZhsch019

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberVersa 10
    Brand NameSZSL
    Payment TermsT/T, paypal
    Brief introduction:
    1. Working conditions
    1.1 Power requirement: 220V ±10Hz
    1.2 Environmental requirements: indoor temperature 1030 , relative humidity 1080%
    2. Technical parameter requirements
    2.1 scope of application: automated extraction of nucleic acids from animal tissues, blood, plant seeds and other samples, with simultaneous establishment of PCR reaction system and routine liquid processing function;
    2.2 applicable samples: animal and plant tissues, blood, plant seeds, etc.
    2.3 working principle: magnetic bead separation principle, bottom adsorption or lateral wall adsorption;
    2.4 sample flux: 1 to 48 channels are optional;
    2.5 Reagent, type of consumables: open;
    2.6 liquid processing module: 8 channel air piston sampler with single channel function; 2.7 Modular configuration: heating, cooling, oscillating;
    2.7.1 temperature range: 4-90 ;
    2.7.2 Oscillation velocity: it has the function of mixing and mixing, and the speed can be adjusted;
    2.8 liquid migration volume / internal mode of operation: by transfer of magnetic beads or by transfer of liquid (liquid volume 1-1000 μ L)
    Basic parameters:
    Size: 57, 45, 54 cm
    Working voltage: 220
    Frequency: 4 / 8 channel fluid shifter
    Weight: 35kg
    Type: magnetic bead nucleic acid extractor
    Brand: auroro
    Model No.: Versa 10
    Processing customization: yes.

  • Brief introduction:
    1. Working conditions
    1.1 Power requirement: 220V ±10Hz
    1.2 Environmental requirements: indoor temperature 1030 , relative humidity 1080%
    2. Technical parameter requirements
    2.1 scope of application: automated extraction of nucleic acids from animal tissues, blood, plant seeds and other samples, with simultaneous establishment of PCR reaction system and routine liquid processing function;
    2.2 applicable samples: animal and plant tissues, blood, plant seeds, etc.
    2.3 working principle: magnetic bead separation principle, bottom adsorption or lateral wall adsorption;
    2.4 sample flux: 1 to 48 channels are optional;
    2.5 Reagent, type of consumables: open;
    2.6 liquid processing module: 8 channel air piston sampler with single channel function; 2.7 Modular configuration: heating, cooling, oscillating;
    2.7.1 temperature range: 4-90 ;
    2.7.2 Oscillation velocity: it has the function of mixing and mixing, and the speed can be adjusted;
    2.8 liquid migration volume / internal mode of operation: by transfer of magnetic beads or by transfer of liquid (liquid volume 1-1000 μ L)
