Product introduction:

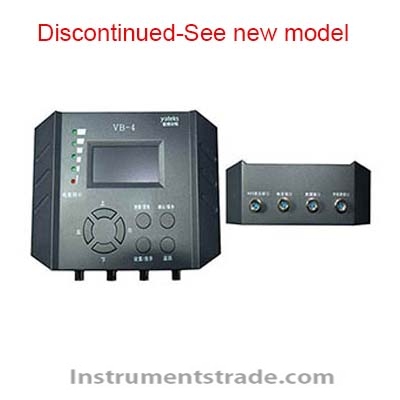

This product vb-4 USES the sensor and the main engine split type design, is suitable for the mechanical equipment conventional and on-line vibration inspection, especially in the rotation and the reciprocating machinery vibration measurement, may simultaneously measure the vibration displacement, the speed and the acceleration, is widely used in the mechanical manufacture, the electric power metallurgy, the general aviation and astronautics and so on domain. Functional features:
1) coefficient setting: directly modify relevant parameters according to the selected sensor;
2) data measurement: simultaneously measure and display acceleration, velocity and displacement;
3) accurate measurement: measurement error. Technical parameters:
Model: VB - 4
Type: digital vibration meter
Measurement range: 0.1 ~ 199.9cm/s
Measurement accuracy: + 3%, + 2digits
Frequency range: 10hz-1khz (LO) 1khz-15khz (HI)
Dimensions: 185 x 100 x 30 (mm)
9 v power supply:
Weight: 450 (g)
Product introduction:
This product vb-4 USES the sensor and the main engine split type design, is suitable for the mechanical equipment conventional and on-line vibration inspection, especially in the rotation and the reciprocating machinery vibration measurement, may simultaneously measure the vibration displacement, the speed and the acceleration, is widely used in the mechanical manufacture, the electric power metallurgy, the general aviation and astronautics and so on domain.
