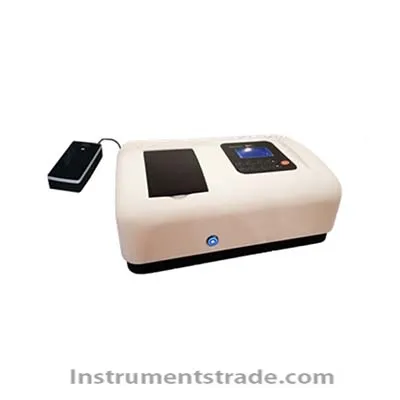

V-1300 portable photometer Introduction
Portable charging detection analyzer Features
1. Low-power design, using lithium battery (16V-24V) as the power supply; optional external adapter AC power supply and USB output module, more flexible and convenient
2.Chinese menu display, easy to operate
3.Long battery life, standard configuration charging can work 3-4 hours alone, each 10,000 mA can last for one hour; more stable and reliable than the vehicle power supply.
4. Backlit display for easy operation in dark places and direct sunlight
5.Imported detection light source and advanced signal processor make test data more accurate and reliable
6.Small size and easy to carry, more suitable for outdoor detection
7.The first portable charging detection analyzer in China
8.Support USB1.0 online interface, the function can be extended
9.With metal button LED light switch, you can reach at your fingertips
10.Single cell test wavelength for more repeatability Technical Parameters
Optical system: single beam
Wavelength range 325–1020 nm
Wavelength selection
Wavelength accuracy ±2 nm
Wavelength repeatability ± 0.1 nm
Spectral bandwidth 4 nm
Photometric range - 0.30-3.0 Abs
Photometric accuracy ±0.8nm
Photometric repeatability ≤ 0.3%T
Stray light ≤0.1%T@340nm, NaNO2
Stability: ±0.002A
Measurement mode: A, T, C, F
Light source: halogen tungsten lamp
Display 128x64 dot matrix liquid crystal display
Host size: 275x347x 25
Operating language Multi-language, including Chinese
Host weight 6kg
The V-1300 portable photometer uses a low-power design and uses a lithium battery (16V-24V) as the power supply. The V-1300 portable photometer can be optionally equipped with an external adapter AC power supply and USB output module, which is more flexible and convenient.
