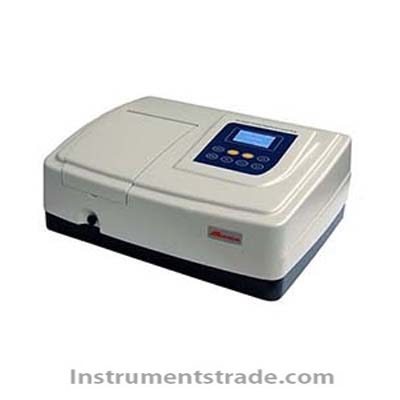

UV3100 UVVisible spectrophotometer

Product ID:FGfg029

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberUV3100
    Brand NameYIMA
    Payment TermsT/T, paypal
    Intruduction
    This instrument uses 128*64 bit dot matrix LCD, which can directly display the wavelength, transmittance, absorbance, concentration and standard curves.
     It uses synchronous sine mechanism which has the advantages of high wavelength accuracy and good reproducibility.
    With 24 bit high speed high accuracy A/D conversion, the instrument has very high sensitivity and reaction rate.
    It can directly form standard curves, and can implement relative test using the standard curves. It can continuously test and save as many as 200 group data, and can save 200 standard curves, and the user can transfer any curve by its number. The measured data can be saved when the electricity supply is cut off suddenly.
    Wavelength can be automatically calibrated, set, and deviation can be automatically repaired.
    The tungsten lamp or deuterium lamp is directly set onto a socket, and the optical debugging is not needed after the change of lamp.
    The high quality grating and the sealed optical path guarantee the ultra low stray light.
    Using the scanning software of our company, it can perform the following functions: photometric analysis, quantitative measurement, qualitative measurement, multi wavelength measurement, DNA/protein measurement and data analysis

    Technical indications
    Type KZ3100
     Wavelength range 190-1100nm
    Spectral bandwidth  2nm
    Wavelength accuracy  ±0.8nm
    Wavelength reproducibility  ≤0.2nm
    Photometric accuracy ±0.3%T
    Photometric reproducibility  ≤0.2%T
    Stray light ≤0.1%T
    Stability  ±0.002A/h(500nm)
    Photometric range 0-200%T,-0.3-3A,0-9999C
    Data output  USB interface
    Print output   Parallel port
    Display system 128*64  LCD
    Light source  Imported long-life tungsten lamp, deuterium lamp
    Detector Imported silicon photo diode
    Power source AC 220V/50Hz or 110V/60Hz
    Dimension 460*380*180mm
    Weight 18kg

  • Intruduction
    This instrument uses 128*64 bit dot matrix LCD, which can directly display the wavelength, transmittance, absorbance, concentration and standard curves.
     It uses synchronous sine mechanism which has the advantages of high wavelength accuracy and good reproducibility.
    With 24 bit high speed high accuracy A/D conversion, the instrument has very high sensitivity and reaction rate.
    It can directly form standard curves, and can implement relative test using the standard curves. It can continuously test and save as many as 200 group data, and can save 200 standard curves, and the user can transfer any curve by its number. The measured data can be saved when the electricity supply is cut off suddenly.
    Wavelength can be automatically calibrated, set, and deviation can be automatically repaired.
    The tungsten lamp or deuterium lamp is directly set onto a socket, and the optical debugging is not needed after the change of lamp.
    The high quality grating and the sealed optical path guarantee the ultra low stray light.
    Using the scanning software of our company, it can perform the following functions: photometric analysis, quantitative measurement, qualitative measurement, multi wavelength measurement, DNA/protein measurement and data analysis
