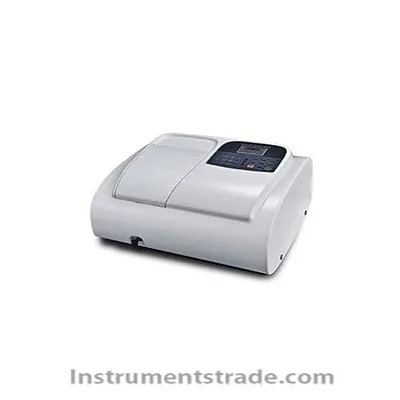

UV-5600 UV/Visible spectrophotometer

Product ID：FGfg042

Price: US$1,650.00 ~ US$3,000.00 PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberUV-5600

Brand NameSHYX

Payment TermsT/T, paypal

Features
Lead screw structure
The instrument uses a lead screw structure so that the instrument wavelength accuracy and wavelength resolution can be greatly improved.
Auto setting wavelength
Users set wavelength automatically through arrow keys to avoid operation errors.
Numerical Keys
With microprocessor controlled, all parameters of the instrument can be easily set by numerical keys.
Date output
Equipped with USB port to connect with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen through the optional software.
8mm thick optical base
The instrument use a rigid die-cast aluminum base as its optical mount to ensure instrument stability and reliability.
Imported high quality deuterium lamp
The UV instruments use imported flanged deuterium lamp with low stray light, pohotmetric accuracy and easy replacing.
Standard curve
instruments can set up various standard curves according to customer's solutions and find the concentration of unknown solutions.
Technical parameters


Model	UV-5600
Wavelength Range	190-1100nm
Bandwidth	2nm
Wavelength Accuracy	±0.8nm
Wavelength Repeatability	0.3nm
Wavelength Setting	Auto
Photometric Accuracy	±0.3%T
Photometric Repeatability	0.2%T
Photometric Range	-0.3-3A 0-200%T 0-9999C
Stability	± 0.002A/h @ 500nm
Baseline Flatness	± 0.002A/h
Stray Light	≤0.05%T
Data Output Port	USB
Printer Port	Parallel Port
Display	128*64 Dots LCD
Lamps	D2&W Lamp
Detector	Silicon Photodiode
Power Requirements	AC 220V/50Hz or 110V/60Hz
Dimension	460360225mm
Weight	18kg

The V-5600 visible spectrophotometer uses a 128 * 64-bit LCD large screen, which can directly display the standard curve. The V-5600 visible spectrophotometer has ultra-low stray light.
