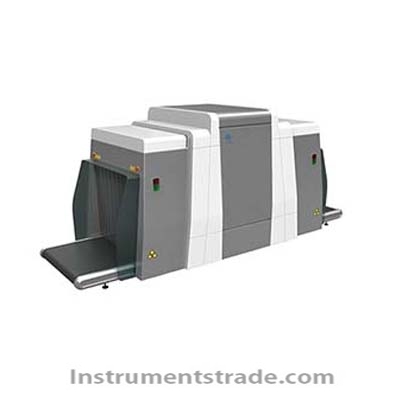

UNX100100A type X-ray security inspection machine

Product ID:WWsscx008

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberUNX100100A
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    UNX100100A type X-ray security inspection machine type is associated technology research and development manufacturing more energy X ray testing equipment. Especially suitable for checked baggage and parcel and safety inspection of the goods, can be widely used in port logistics transportation, civil aviation, customs, large-scale activities, etc. Product design combined with industry characteristics, applying advanced industrial design concept, overall appearance is simple and beautiful.
    Features:
    1. The detection speed 0.22 m/s (equipped with 0.4 m/s, 0.67 m/s)
    2. The maximum penetration 43 mm steel plate
    3. The channel is the largest object size of 1000 mm x 1000 mm
    4. The remote technical service support
    5. Low radiation dose leakage, close to natural cost, meet the domestic health and safety standards
    6. Professional material identification capability: orange on behalf of the organic matter, blue for inorganic, green for metal and mixture
    7. Explosives and drugs auxiliary detection function, according to the explosives and drug composition for automatic detecting and alarm
    Technical parameters:
    Appearance size/weight: 3802 * 1410 * 1410 mm / 1300 kg
    The channel size: 1000 mm (width) x 1000 mm (high)
    Conveyor belt speed: 0.22 m/s (equipped with 0.4 m/s, 0.67 m/s)
    Conveyor belt height: 330 + 30 mm
    The maximum load: 200 kg (uniform)
    Silk resolution: 40 awg) (diameter of 0.07 mm wire
    Penetration: 43 mm steel plate
    Tube voltage: 100-160 kv (adjustable)
    Tube current: 0.4-1.2 mA (adjustable)
    Ray beam spread Angle: 80 °
    Image enhancement: black and white, the color, high energy, which leads to low energy through and eliminate organic matter, inorganic matter out, beast, variable absorption enhancement, pseudo color, etc
    Leakage radiation dose rate: 1 mu Sv/h (five centimeters) of the shell, comply with all domestic and international health and safety standards
    Power supply: ac 220 v power (15% ~ + 10%), 50 hz plus or minus 3 hz
    Power consumption: 1.0 kva


  • Brief introduction:
    UNX100100A type X-ray security inspection machine type is associated technology research and development manufacturing more energy X ray testing equipment. Especially suitable for checked baggage and parcel and safety inspection of the goods, can be widely used in port logistics transportation, civil aviation, customs, large-scale activities, etc.
