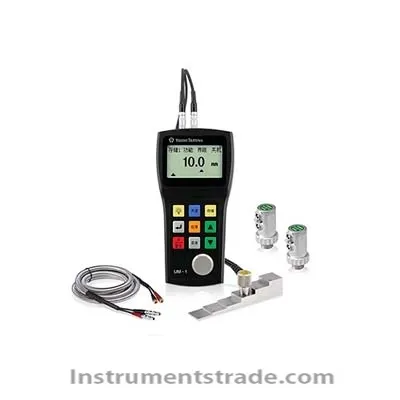

UM-1 series thickness gauge Introduction: The UM series ultrasonic thickness gauge developed and produced by our factory adopts the principle of ultrasonic measurement and is an ultra-small measuring instrument. It measures quickly, without damage and accurately. The instrument can be widely used in the fields of manufacturing, metal processing, chemical industry, commodity inspection, etc., and is suitable for measuring the thickness of various materials that can propagate ultrasonic waves at a constant speed and can be reflected from the back side. . In addition to the accurate measurement of various plates and various machined parts, it is also possible to monitor various pipes and pressure vessels in the production equipment to monitor the degree of corrosion after corrosion during use. Special instrument. Technical Parameters: Display: 128×64 dot matrix LCD display (EL backlight) How it works: Using a twin crystal probe pulse-echo method Measuring range: 0.8mm ~ 300mm (depending on the probe, standard measurement range: 1-100mm) Resolution: 0.1mm or 0.001in Repeatability: 0.1mm Measurement error: ±0.1mm (10mm or less) ±(1%H+0.1) (10mm or more) Note: H is the thickness of the measured object Unit: mm or inch Calibration mode: zero calibration, two-point calibration V path correction: V sound path correction to compensate for the nonlinearity of the dual crystal probe Measurement update rate: 4Hz Material sound velocity range: 1000～9999m/s or 0.0394～0.3937in/us Storage function: Divide 5 arrays to store 500 thickness values Minimum scan: Drag the probe along the surface of the object to be measured, and the instrument can automatically find the thinnest thickness. Alarm function: The thickness limit can be set, and there is an alarm sound for the measured value outside the limit. Sound speed storage: can store sound speed of 5 different materials Working language: Chinese or English can be selected Communication interface: USB interface or RS232 serial port (optional) Application software: UmView software for measuring data transmission, storage, analysis and editing of documents (optional) Power: Two 1.5V AA batteries, when there is insufficient power, there is a low voltage prompt Operating time: Alkaline battery can be used for 200 hours (without backlight) Auto power off: 5 minutes after no operation, automatically shut down Working temperature: -10 ° C ~ +50 ° C, with special requirements up to -20 ° C Size: 149mm × 73mm × 32mm Weight: 210g (with battery)
Introduction: The UM series ultrasonic thickness gauge developed and produced by our factory adopts the principle of ultrasonic measurement and is an ultra-small measuring instrument. It measures quickly, without damage and accurately. The instrument can be widely used in the fields of manufacturing, metal processing, chemical industry, commodity inspection, etc., and is suitable for measuring the thickness of various materials that can propagate ultrasonic waves at a constant speed and can be reflected from the back side. . In addition to the accurate measurement of various plates and various machined parts, it is also possible to monitor various pipes and pressure vessels in the production equipment to monitor the degree of corrosion after corrosion during use. Special instrument.
