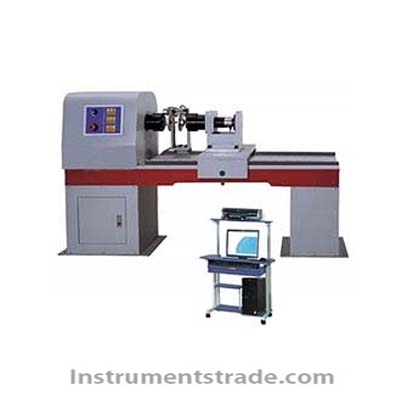

Brief introduction: Used in metal materials, non-metallic materials, composite materials and components of torsion performance test experiment. Meet the inspection standards: JJG269-2006 "torsion testing machine, Test method: GB/T10128-2007 "the metal room temperature torsion test method" Features: 1.The servo motor driver, ensure the reverse speed constancy; 2.The cycloidal reducer drive, ensure the transmission of high efficiency and stability; 3.High electrical control system stability and stable and reliable operation, quick response, low noise, adjustment of parameters according to different models, make the equipment running in the best condition; 4. Has perfect safety protection functions such as overload protection, abrupt stop. 5.All the test software of Chinese Windows platform, has strong data and graphics functions, can be printed out immediately the complete test reports and test curve. 6.With torsional strength and torsional Angle of automatic tracking measurement and loading rate and peak instructions and other functions; 7.Test data processing and display, and print out the test date, number, material qualitative, reverse, meet the national standards, such as strength test report; 8.With high precision linear guide, ensure the coaxial degree and parallel degree of the equipment. Technical parameters: Distance measuring range: 1 ~ 100% FS Level of testing machine: 1/0.5 on the Richter scale are unlikely Torque Angle measuring relative error (%) plus or minus 1% (grade 1) / + / - 0.5% (0.5) Torque resolution: 1/300000 of the maximum torque n. m Torque Angle measurement range: 0-10000 °) Torsion Angle relative error value: plus or minus 1.0% Reverse twist Angle resolution: 0.0045 ° Torsion Angle relative error value: plus or minus 1.0% Reverse twist Angle resolution: 0.0045 ° Reverse twist Angle of relative error value: plus or minus 1.0% The reverse speed: 6-720 ° / min Reverse speed relative error: value plus or minus 1.0% Chuck: the largest spacing between 650 (mm) Parallel to the sample section diameter: 8-28 (mm) Power supply: three-phase 380/50 + / - 10% (V/Hz) Power: 0.2 ~ 4 (kW) Host weight: 300 ~ 1500 (Kg)
Brief introduction: Used in metal materials, non-metallic materials, composite materials and components of torsion performance test experiment. Meet the inspection standards: JJG269-2006 "torsion testing machine, Test method: GB/T10128-2007 "the metal room temperature torsion test method"
