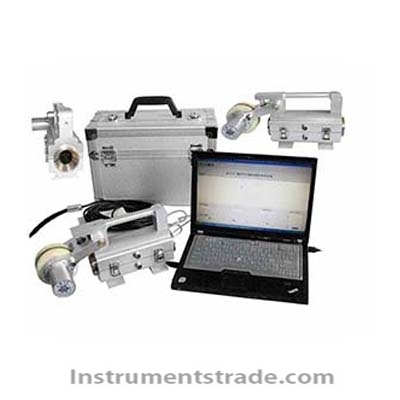

Brief introduction: TST explosion-proof type wire rope flaw detector strict implementation of GB/T21837-2008 "ferromagnetic wire rope electromagnetic detection method, MT/T970-2005" steel wire rope (cable) online non-destructive testing method and decision rules of standard, the quantitative detection of judging the internal and external broken wires, wire rope fatigue wear, corrosion and structure deformation and other hidden dangers to the safety of using and damage level, realize the non-contact wide pitch detection of steel wire rope, not affected by oil dirties, generally become warped wire and wire rope speed, strong ability of detection by; Humanized interface design makes the operation is very convenient. After testing can detect instant random access to data, the waveform chart, testing results, analysis and digital connect printer can print out the standard format of test report in time, to provide users with the scientific evidence for reasonable safe use and update. Technical parameters: Electromagnetic induction signal to noise ratio: S/N > 85 db Detection uncertainty: plus or minus 1.2% or less Distance signal extracted effectively: 0 ~ 30 mm Detection real-time response time: 0.5 ms or less Sustainable detection range: > 104 m The dissipation power sensor: < 50 mw Reliability calibration cycle: > 27 x104h The rated working voltage: 5 VDC VDC voltage fluctuation range: (4.75 ~ 4.75) Working current: ma 200 or less Output signal goes: 6 road The output signal voltage range (0 ~ 5) VDC The sensitivity of work: acuity 1.0 V/mT
