Purpose:

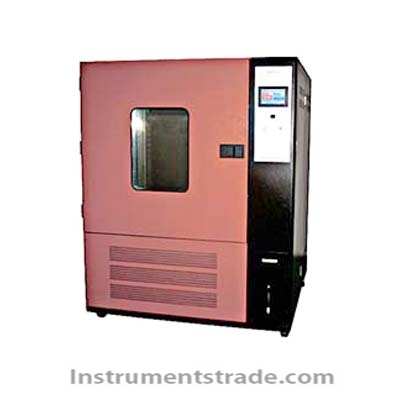

TS-80 constant temperature and humidity test box is used to test the performance of materials in various environments and to test the heat, cold, dry and moisture resistance of various materials. Suitable for electronic, electrical, communication, instrumentation, vehicle, plastic products, metal, food, chemistry, building materials, medical, aerospace and other products testing quality. Characteristics:
Appearance: high texture appearance, the body adopts arc shape, the surface is treated by fog surface stripe, and the plane no reaction handle, easy to operate, safe and reliable.
Observation window: rectangular double-layer glass viewing window, can be used in the test, the window has anti-perspiration electric heater device to prevent water vapor condensate water drop, and high brightness PL bright light to keep the light in the box.
Water supply system: external water supply system is convenient for replenishing humidified buckets and for automatic recycling.
Compressor: the compressor circulates the system to adopt the French "Taikang" the brand, can remove the lubricating oil between the condensing tube and the capillary more effectively, and the entire series uses the environmental protection cold coal R404507)
Control mode: intelligent PID SSR/SCR forward and inverse two-way synchronous output, including advanced slope control logic.
Controller: multi-stage program editing and temperature, humidity can be fast (OUICK) or slope (SLOP) control.
System capacity: can log in 150 groups of programs × 1500 segments, the number of segments can be arbitrarily divided, programs can be freely connected with each other.
Cycle setting: 9999 x 9999 cycles can be performed, and 5 separate partial cycles can be cut out.
Time signal: 3 groups of timing control output interface, with 10 kinds of time control mode, easy to perform external driving components start / stop timing planning.
Safety check: 15 full-featured system detections to ensure safe operation of the machine. And can automatically display fault time, items and troubleshooting countermeasures. Technical parameters:
Type: TS-80
Internal dimensions W × H × DX cm: 80L:40 × 50 × 40
External dimension W × H × DX cm: 80L:93 × 131 × 81
Volume L): 80L
The heating rate is about 0 20min to 100 C, about 35min, -20 to 100 C, 35min, -40 ~ 100 C, -70 ~ 100 C, 60min.
The cooling rate is about 20 20min to 0 C, about 20 45min to -20 C, about 45min, 20 ~ -40 C, 60min, 20 90min ~ -70
Temperature circumference: 0 C, -20 C, -40 C, -70 C ~ 150 C
Temperature distribution average: + 0.5 C
Humidity distribution mean: + 3%
Temperature stability: + 0.3 C
Humidity stability: + 2.5%RH
Humidity enclosure: 20% ~ 98%RH (can be customized according to customer requirements: low humidity can reach 5%RH)
Program control: 120-group 1200 segment programming with 999-cycle setting, with multi-group PID control function and RS-232 computer interface control.
Humidification system: surface evaporation type, with humidifier water shortage and protection against overheating.
Dehumidification system: refrigerated latent heat dehumidification method
Cooling system: -20 ℃ above 20 ℃ with one-unit airtight air-cooled refrigeration system or below -40 ℃ using binary fully closed air-cooled refrigeration system
Water supply system: built in pure water generating device, without manual adding water, can run water directly, and attach water shortage warning device
Material: SUS#304, stainless steel
Insulation material: rock wool and rigid pu foam insulation
Safety devices: fuse free switch, compressor overload, cold coal height, overheating, power failure, protective switch, temperature limit protection and fault alarm device
Temperature and humidity Adjustment: a balanced way of regulating temperature and humidity
Standard equipment: automatic fogging glass window, up and down adjustable two layers, test hole, operating indoor lamp, moving wheel
Purchase equipment: recorder
Power: AC220V/380V ±10 / 50 / 60 Hz
