TR 4D tubular mixer

Product ID：SYHHFSzdhh033

Price: Please inquire PDF Format

Supply Ability:80SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberTR 4D

Brand NameGUANGZHOUHAOTE

Payment TermsT/T, paypal

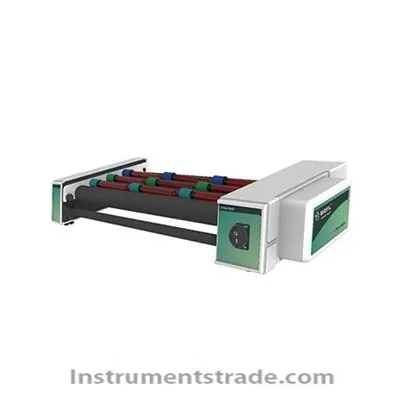

TR 4D tubular mixer

Features
1.Rolling and rocking combine to achieve the best results
2.Fixed speed 30r/min, speed accuracy ±2r/min
3.Tilt angle ± 3 °
4.Turn remove installation tool free
5.The drum can be adjusted to accommodate different diameter pipes
6. Suitable for mixing blood samples and liquids with high viscosity
7.Small size saves lab space
Technical Parameters

model	TR 4D
Cat.No.	ROL000004
Rocking motion	Rolling and swinging
Number of tube rollers	4
Speed range	fixed 30r/min
Speed Accuracy	±2r/min
Tilt angle	±3°
Roller size	330(length)×30（Roller diameter）
Max.loading capacity	1.5kg
Run time	Continuous mode
Removable rollers	yes
Protection class	IP21
Input voltage	115-240 VAC 50/60HZ
Dimension （L×W×H）	475×210×80mm
Weight	1.5 kg

Features
1.Rolling and rocking combine to achieve the best results
2.Fixed speed 30r/min, speed accuracy ±2r/min
3.Tilt angle ± 3 °
4.Turn remove installation tool free
5.The drum can be adjusted to accommodate different diameter pipes
6. Suitable for mixing blood samples and liquids with high viscosity
7.Small size saves lab space
