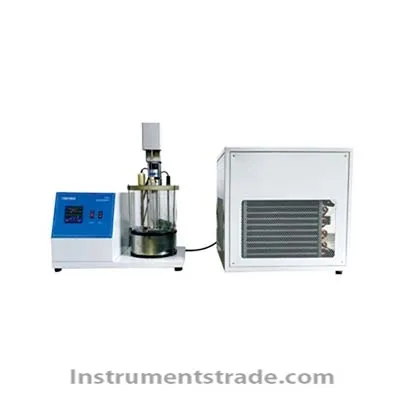

TP6251 Kinematic Viscosity Tester Introduction
TP6251 Kinematic Viscosity Tester is designed and manufactured according to GB / T 265 standard, and can accurately measure the kinematic viscosity of petroleum products in strict accordance with the standard description. Features
Digital temperature controller is used to control the temperature of the constant temperature bath. The temperature control range is -70 ～ 20 ℃, and the temperature control accuracy is ± 0.1 ℃. The digital temperature control meter can directly display the set temperature and actual temperature, and it is easy to perform temperature setting and temperature difference correction.
Equipped with 2 viscometer clamps, which can be used to thermostat other samples to be tested at the same time to improve the working efficiency.
The constant temperature bath is circular, which is beneficial to the constant temperature of the constant temperature bath. The bottom foot can be adjusted to make the constant temperature bath in a horizontal state. It fully complies with the standard description and improves the accuracy of the measurement results.
This instrument adopts the cascade compressor refrigeration method, and the compressor adopts the internationally renowned brand Danvers. The bathtub uses a Dewar to prevent frost. Technical Parameters
Temperature control range: -70 ～ 40 ℃
Temperature control accuracy: ± 0.1 ℃
Resolution: ± 0.1 ℃
Experiment hole: 2 holes
Display: Digital display
Capillary type: Pinnacle capillary viscometer
Viscometer clamp: 2 sets
Ambient temperature: ≤30 ℃
Ambient humidity: ≤ 85%
Working power: AC 220V ± 10% 50Hz ± 10%
Heating power: ≤1000W
Cooling power: 400W and 500W
Dimensions: 400mm × 530mm × 650mm (main unit) 500mm × 570mm × 600mm (refrigeration unit)
Weight: 80kg
TP6251 Kinematic Viscosity Tester is designed and manufactured according to GB / T 265 standard, and can accurately measure the kinematic viscosity of petroleum products in strict accordance with the standard description. TP6251 Kinematic Viscosity Tester adopts the cascade compressor refrigeration method, and the compressor uses the internationally renowned brand Danvers.
