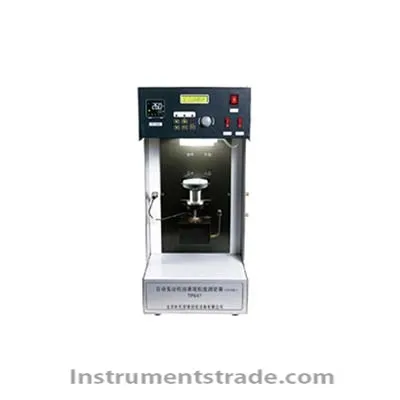

TP547 apparent viscosity tester Introduction
TP547 is suitable for measuring the apparent viscosity of engine oil under the conditions of shear stress of about 1200 ～ 27000 mPa.s and shear rate of 105 ～ 104 S-1. , Chemical industry, commodity inspection and scientific research departments. Features
Compact structure, beautiful appearance and easy operation.
The fuzzy temperature control principle is adopted, the temperature control accuracy is high, and the response speed is fast.
Personal computer is used as the main control system, which is convenient for users.
The built-in printer can print out the experimental results at any time, which is convenient for record filing.
Automatic calculation of apparent viscosity of engine oil by curve fitting method. Technical Parameters
Test range: 1200 ～ 27000 mPa.s
Temperature measurement range: -50 ～ 100 ℃
Temperature measurement accuracy: ± 0.1 ℃
Refrigeration range: -50 ℃ ～ room temperature
Temperature control accuracy: ± 0.05 ℃ Ambient temperature: -40 ～ 30 ℃
Power source: AC 220V ± 10% 50Hz ± 10%
Machine power: ≤2KW
Heating power: ≤800W
Introduction
TP547 is suitable for measuring the apparent viscosity of engine oil under the conditions of shear stress of about 1200 ～ 27000 mPa.s and shear rate of 105 ～ 104 S-1. , Chemical industry, commodity inspection and scientific research departments.
