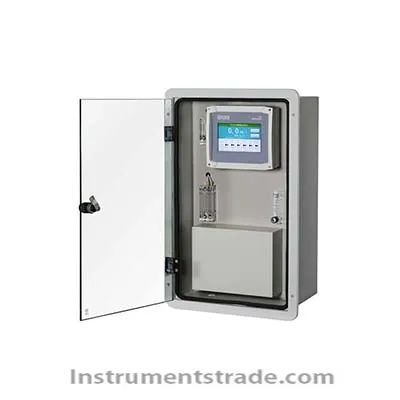

TP107 Online Phosphate Analyzer for boiler water detection

Product ID：HSQTlsg007

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberTP107

Brand NameYIMA

Payment TermsT/T, paypal

Applications:
Power
Chem or Petrochemical
Pulp and Paper
Features:
1.Programmable multi-stream switching up to 6 streams, cost saving.
2.Imported High precision electromagnetic valve---long life, accurate and reliable measurement
3.Set period time according to user for two sample automatic calibration----ensured the stability of the operation and reduced the workload of maintenance.
4.Color LCD display, different color display real time curve and history curve of each channel at the same screen.
5.Previous measurements can be stored up to one month-- For tracking convenience
6.Monochromatic cold light source
---long life, stable and reliable
Programmable Multi-channel high precision current signal output--- Facilitate subsequent connections and automatic dosing.
7.Panel mount, exquisite structure, easy to operate and maintenance.
Specifications:

Measurement principle	Phosphorus vanadium molybdenum yellow photoelectric colorimetry method
Display	7.0 inch color LCD display in English.
Measurement Range	(0-20.00)mg/L, (0-50.00)mg/L (optional)
Measurement Cycle	About 3 min/channel
Response Time (T90)	<4 min
Accuracy	±2%F.S
Repeatability	±1%F.S
Stability	Chemical drift: ±1%F.S/24h
Temperature	5 to 50 ℃
Sample Condition	Flow: (10-40)L/h
Impurity	Solid contents in sample: ≤5μm (no gel and grease)
Ambient Temperature	5 to 45℃
Ambient Humidity	≤90%RH (no condensation)
Reagent Consumption	3L/month
Alarm Outputs	No flow, high alarm and low alarm (each channel output individually)
Analog Output	(0-10)mA, (0-20)mA or (4-20)mA,optional (each channel has its isolated output)
Power Supply	AC(165-265)V, (50) Hz
Power Consumption	About 100W
Overall Dimension (mm)	720(H) × 460(W) × 270(D)
Cutout Dimension (mm)	645 × 410
Net Weight:	24kg

Applications:
Power
Chem or Petrochemical
Pulp and Paper
Features:
1.Programmable multi-stream switching up to 6 streams, cost saving.
2.Imported High precision electromagnetic valve---long life, accurate and reliable measurement
3.Set period time according to user for two sample automatic calibration----ensured the stability of the operation and reduced the workload of maintenance.
4.Color LCD display, different color display real time curve and history curve of each channel at the same screen.
5.Previous measurements can be stored up to one month-- For tracking convenience
6.Monochromatic cold light source
---long life, stable and reliable
Programmable Multi-channel high precision current signal output--- Facilitate subsequent connections and automatic dosing.
7.Panel mount, exquisite structure, easy to operate and maintenance.
