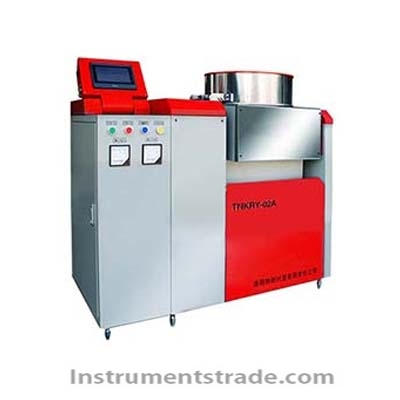

Introduction: TNKRY-02A Multi-Functional Melt Prototyping Machine is a professional matching equipment of “X-Fluorescence Analyzer” melting sample testing method elaborately developed by our company. It has independent intellectual property rights and can be widely used in iron and steel, metallurgy, chemical engineering, geology, cement, ceramics and fireproofing. Materials and other industries, using touch screen display control, friendly interface, easy operation, high degree of automation, with fast heating, precise temperature control, energy saving, stable operation, temperature can be as high as 1170 °C, also has excellent melting of refractory materials The effect is good reproducibility of the melted sample, superior performance of all indexes, and good cost performance. Features 1. High work reliability Our company first successfully developed in 2001 and sold the first domestically-manufactured X-ray fluorescence spectrometer-dedicated fully automatic melt prototype. After long-term market tests and improvements, the technical performance and reliability have reached the best level in the country. 2. High work efficiency The three-or four-head or six-head modular design of the melt sampler is suitable for the preparation of medium batch samples and can also satisfy the preparation of large batch samples. Melting and molding can be completed without molding at a time. It is the most efficient automatic melting device in the same equipment in China. 3. The best melting effect The model melt sampler adopts advanced furnace body swing and sample rack spin at the same time to ensure the swirling motion of the sample melt, and achieve the best uniformity and the best bubble emission effect in the shortest time. 4 suitable for a variety of materials at different temperatures melt sample This machine adopts silicon carbon rod heating, S-type platinum rhodium thermocouple temperature measurement, LCD touch display + PLC + AI artificial intelligence control, new intelligent man-machine operating system, with fault self-test, easy operation, reliable operation, etc. Features, parameters default design, make operation easier, safer, more automatic, more accurate temperature control, high quality melting effect can be achieved under a variety of materials at different temperatures, with excellent analytical reproducibility, can meet A variety of industry analysis standards. 5. Has a number of protection features There are many protection functions designed, such as burnout, over-temperature, etc. When the temperature exceeds or exceeds the limit stroke, dual protection of hardware and software is also used to ensure the long-term stable operation of the equipment. Technical Parameters: Control System: AI Intelligent Control Length × width × height: 1100mm × 620mm × 1050mm Heating rate: average 30°C/min adjustable Rated temperature: 1200°C Temperature control accuracy: ±1°C during heat preservation (S-type platinum rhodium thermocouple thermometry) Melt sample quantity: 6 positions (one molding) Furnace swing angle: 0~40° adjustable Bracket rotation speed: 0~30r/min 9 working curves available The choice of sampling time Before standing time 0~160min optional Swing time 0~160min optional After standing time 0~160min optional Extreme operating time 165h Instrument weight: The total weight of equipment is 360kg Equipment power: 10kw Power requirements: heating circuit single phase 380V control circuit single phase 220V Rated current: 30A
Introduction: TNKRY-02A Multi-Functional Melt Prototyping Machine is a professional matching equipment of “X-Fluorescence Analyzer” melting sample testing method elaborately developed by our company. It has independent intellectual property rights and can be widely used in iron and steel, metallurgy, chemical engineering, geology, cement, ceramics and fireproofing. Materials and other industries, using touch screen display control, friendly interface, easy operation, high degree of automation, with fast heating, precise temperature control, energy saving, stable operation, temperature can be as high as 1170 °C, also has excellent melting of refractory materials The effect is good reproducibility of the melted sample, superior performance of all indexes, and good cost performance.
