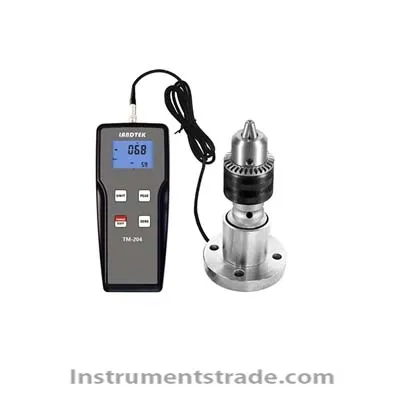

TM-204-20N. m Handheld Torque Meter Introduction: Digital display hand-held torque meter is a small, simple, multi-functional and high-precision torque meter testing instrument, which is widely used in electronic appliances, building hardware, light industrial textiles, auto parts, lighters and other ignition devices, fire-fighting equipment, pens, locks, fishing gear, chemicals, power machinery, scientific research institutions and other industries for torque load and test. characteristic: 1. High precision and high resolution. 2. Digital display, no parallax. 3. Various measuring units are available for selection and conversion. 4. Peak holding function. Keep the peak display until it is cleared manually. 5. Alkaline battery can be used for power supply; It can also be powered by external power supply. Technical parameters: Model: TM-204-20N. m Measuring range: ± 2kgf. m ±2000gf.m ±20N.m ±4.4Lbf.m Resolution: 1gf 0.01 kgf ( < 100 kgf )； 0.1 kgf ( ≥100 kgf ) 0.1 N ( <1000 N )； 1 N ( ≥1000 N ) 0.1 Lbf ( <1000 Lbf )； 1 Lbf ( ≥1000 Lbf ) Accuracy: Grade 0.5 Precision: ± 0.5% FS (range) ± 1 digital peak value Unit: kgf m, gf. m, N.m, Lbf.m Measurable value: peak value, instantaneous value Display: 4-digit large LCD, positive direction dual display Shutdown mode: 10 minutes automatic shutdown or manual shutdown Backlight: blue backlight Allowable load: 150% FS (buzzer alarm when exceeding 110% FS) Power supply: 2 No. 5 batteries or 5V DC current Operating temperature: 0 ° C~40 ° C Operating humidity:<80% Working environment: no earthquake source and corrosive medium around Host weight: 390 Host size: 211mmx80mm x 36 mm
Introduction: Digital display hand-held torque meter is a small, simple, multi-functional and high-precision torque meter testing instrument, which is widely used in electronic appliances, building hardware, light industrial textiles, auto parts, lighters and other ignition devices, fire-fighting equipment, pens, locks, fishing gear, chemicals, power machinery, scientific research institutions and other industries for torque load and test.
