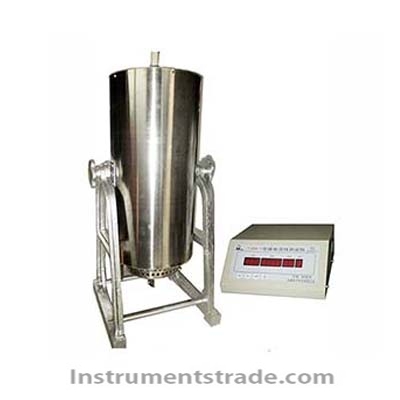

TJHX-1 coal activity detector for Coal quality

Product ID:HZMTOther006

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberTJHX-1
    Brand NameYIMA
    Payment TermsT/T, paypal
    Introduction:
    The instrument is mainly used in the determination of carbon dioxide chemical reactivity (coal activity) in coal, coking coal and other industries in electric power, metallurgy, petrochemical industry, coal chemical industry, environmental protection, geological exploration and feed industry. Using standard GB / T220-2001 "Determination of carbon dioxide chemical reactivity of coal"
    Features:
    1, coal activity refers to the chemical reactivity of coal and coke on carbon dioxide, that is, under certain high temperature conditions, the ability of coal to reduce carbon dioxide, coal chemical stability is one of the indicators.
    2, the instrument consists of silicon carbon high temperature furnace, SCR temperature controller and gas analyzer composed of three parts, with heating speed, good insulation properties, temperature control accuracy, sensitivity and so on.
    Technical Parameters:
    1. Furnace temperature: a short time maximum temperature of 1500 degrees using the furnace temperature of 1200 degrees -1300 degrees
    2. Constant temperature zone: 100mm
    3. Heating rate: 20-25 degrees / min 1 hour to reach 1200 degrees -1300 degrees furnace temperature
    4. Silicon carbon tube: double-threaded Φ45 / 35 × 500 / 100,40 mm
    5. Reaction tube: Corundum tube Φ25 / 20 × 850 mm
    6. Controller: 0-1600 degrees in the whole range can be automatically controlled temperature
    7. Pyrometer: Platinum and rhodium - platinum thermocouple, range 0-1600 degrees accuracy 1.0 level
    8. Power consumption: 4-5 kW
    9. Power supply voltage: 220V ± 20V
    10. Pyrometer: Platinum and rhodium - platinum thermocouple, range 0-1600 degrees accuracy 1.0 level
    11. Total weight: 90kg
    12. Dimensions: high temperature furnace 400mm × 460mm × 980mm
                      Controller 380mm × 450mm × 250mm
                      Gas storage float 360 × 750mm

  • Introduction:
    The instrument is mainly used in the determination of carbon dioxide chemical reactivity (coal activity) in coal, coking coal and other industries in electric power, metallurgy, petrochemical industry, coal chemical industry, environmental protection, geological exploration and feed industry. Using standard GB / T220-2001 "Determination of carbon dioxide chemical reactivity of coal"
