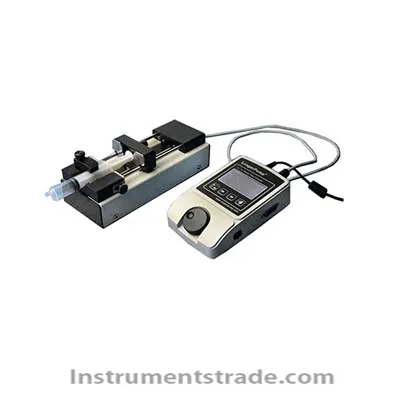

Features: 1. Custom Syringe: can store four user-defined syringe inner diameters 2. Select the syringe from the list or directly enter the syringe inner diameter to determine the syringe 3. Linear thrust output: full range >90N 4. Signal output function: two OC door switch signal output, indicating pump start/stop and direction 5. Flow correction function: get more accurate liquid volume by correcting operation 6. Syringe protection function: The syringe pump can be protected from damage by adjusting the position of the limit block. 7. Block entry (return) function: full speed perfusion or liquid extraction 8. It can be connected to the host computer by 485 communication bus and controlled by the background. 9. External control input interface: external start/stop input 10. Control output interface: two OC door switch signal output, indicating pump start/stop and direction Technical Parameters: Working mode: injection, extraction, first injection, first extraction, injection, continuous Number of execution units: 1 Maximum stroke: 90mm Stroke resolution: 0.165μm Line speed range: 7.94μm/min-79.4mm/min (flow rate = line speed × cross-sectional area inside the syringe) Line speed adjustment resolution: 7.94μm/min Stroke control accuracy: error ≤ ± 0.5% (stroke ≥ 30% of the maximum stroke) Rated linear thrust: >90N Syringe selection: built-in main manufacturer, main model syringe for selection Syringe Customization: Stores four user-defined syringe internal values Flow Correction: Get a more accurate volume through the calibration procedure Operation parameter setting: dispense liquid volume, injection time, extraction time, interval time, number of allocations, etc. Each channel can be set separately, allowing all channels to adopt the parameters of the specified channel. Start parameter setting: each execution unit is started separately, each execution unit is delayed, and each execution unit is started synchronously. Display parameter selection: volume, flow or line speed Power-down memory: After power-on, you can choose whether to continue working according to the state before power-off. Fast forward (back) function: full speed injection or liquid extraction Status signal output: 2-channel OC gate signal output for indicating start/stop and direction status Control signal input: 3 TTL level signal inputs for controlling start-stop, fast forward, fast reverse Communication interface: RS485 Controller dimensions: 170 × 108 × 65 (mm) Controller weight: 0.5kg Execution unit dimensions: 245 × 100 × 95 (mm) Execution unit weight: 1.3kg Use power: AC 90V-260V/10W Working environment temperature: 0°C-40°C Working environment relative humidity: <80%
Features: 1. Custom Syringe: can store four user-defined syringe inner diameters 2. Select the syringe from the list or directly enter the syringe inner diameter to determine the syringe 3. Linear thrust output: full range >90N 4. Signal output function: two OC door switch signal output, indicating pump start/stop and direction 5. Flow correction function: get more accurate liquid volume by correcting operation 6. Syringe protection function: The syringe pump can be protected from damage by adjusting the position of the limit block. 7. Block entry (return) function: full speed perfusion or liquid extraction 8. It can be connected to the host computer by 485 communication bus and controlled by the background. 9. External control input interface: external start/stop input 10. Control output interface: two OC door switch signal output, indicating pump start/stop and direction
