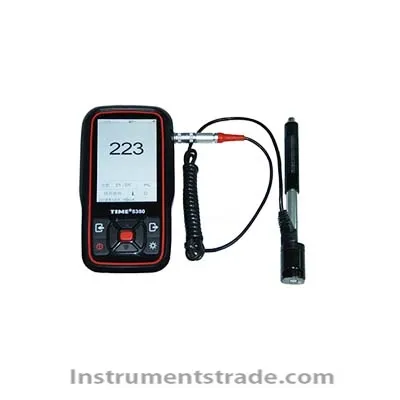

TIME5350 Leeb hardness tester Introduction
The TIME5350 Leeb hardness tester is a measurement instrument based on the Leeb hardness test and combined with advanced microelectronic technology. It is used to measure the hardness of metal materials. It can be used for metal materials with a wide range of hardness, especially It is suitable for measuring the hardness of large, heavy, unsuitable disassembly, small space, different directions and special parts. The instrument digitally displays the hardness value, small size, light weight, simple test, has the advantages of easy portability, high inspection efficiency, and slight damage to the test surface. This instrument can play an important role in ensuring product quality and conducting metal material failure analysis. Features
New appearance design, novel shape, easy to hold, good craftsmanship.
Large 3.5-inch LCD screen, 320 × 480 color graphics dot matrix, beautiful fonts and graphics, rich and clear information.
It has 3 levels of brightness adjustment of the display backlight, direct button operation, adapt to different brightness test environment.
All Chinese display, menu operation, few keystrokes, simple and convenient operation.
All display interfaces have operation prompts for easy operation.
Built-in lithium ion rechargeable battery and charging control circuit, no memory effect, convenient charging and long life.
It has the function of automatically identifying the common impact direction (except for G-type impact device).
Adopt digital impact device, can be equipped with all 7 kinds of probes, the probe type is automatically identified, no need to re-calibrate when replacing.
This machine can store 200 sets of measurement data, including single measurement value, average value, measurement date, impact direction, frequency, material, hardness system and other information.
With a MicroSD card interface, the MicroSD card (hereinafter referred to as SD card) with a maximum expansion of 32GB is used to store measurement data to meet the user's mass storage needs. The SD card data can be directly read on the computer, which is convenient and fast.
The upper and lower limits of the hardness value can be set in advance, and an alarm is automatically generated when the range is exceeded, which is convenient for the user to test in batches.
The main display interface has information contents such as date, time, memory information, battery information, electronic column, out-of-tolerance reminder, impact device type, operation reminder, etc., which is convenient and practical. With USB interface, it can realize data upload to the host computer, external micro printer to print data measurement data, charging and other functions.
Through the micro printer, you can print any number of test results.
According to user requirements, it can be equipped with upper computer software, and local measurement data can be transferred to the upper computer in Microsoft Word or Excel format to meet higher requirements of quality assurance activities and management.
With indication software calibration function.
With "Steel" material, when testing the "Forged Steel" sample with a D / DC impact device, the HB value can be directly read, eliminating the trouble of manual table lookup.
You can switch to the foreign hardness conversion table as a reference for hardness conversion. Technical Parameters
Measuring range: HLD (170 ～ 960) HLD
Measuring direction: 360 °
Hardness system: Leeb, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shore
Display: 3.5-inch LCD screen, 320 × 480 graphic dot matrix, 16-bit color
Data storage: 200 sets of local, SD card up to 32GB
Upper and lower limit setting range: same as measuring range
Working voltage: 3.7V
Charging time: about 5 hours
Charging power supply: 5V / 500mA
Continuous working time: about 12 hours
Communication interface standard: USB2.0
Dimensions: 148.6 × 81.8 × 22.5mm
Weight: about 200g (host)
Introduction
The TIME5350 Leeb hardness tester is a measurement instrument based on the Leeb hardness test and combined with advanced microelectronic technology. It is used to measure the hardness of metal materials. It can be used for metal materials with a wide range of hardness, especially It is suitable for measuring the hardness of large, heavy, unsuitable disassembly, small space, different directions and special parts. The instrument digitally displays the hardness value, small size, light weight, simple test, has the advantages of easy portability, high inspection efficiency, and slight damage to the test surface. This instrument can play an important role in ensuring product quality and conducting metal material failure analysis.
