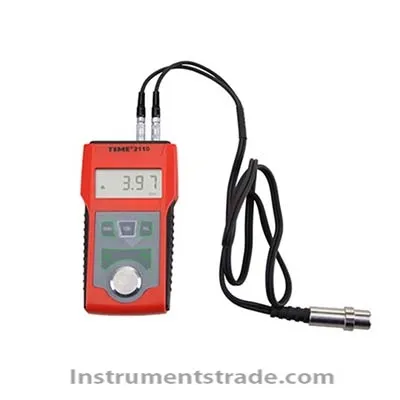

TIME®2110 Ultrasonic Thickness Gauge Introduction
The TIME®2110 ultrasonic thickness gauge uses the principle of ultrasonic measurement, which is suitable for the measurement of the thickness of various materials that can make ultrasonic waves propagate inside it at a constant speed and can reflect from its back. This instrument can accurately measure various plates and various processed parts. Another important aspect is that it can monitor various pipelines and pressure vessels in production equipment to monitor the degree of thinning after corrosion during use. It can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields. Features
Automatically calibrate the zero point to correct the system error;
Linear automatic compensation to improve accuracy;
Use the up and down adjustment keys to quickly adjust the speed of sound and thickness, and quickly query the thickness storage unit;
Prompt for coupling status;
Store ten thickness values, data will not be lost after shutdown;
Sound velocity measurement function: directly measure the sound velocity according to the thickness of the sample block;
It can store the sound speed of five different materials.
With metric and imperial display functions
Automatically calibrate the zero point to correct the system error
Linear automatic compensation, using computer software to correct the nonlinear error of the probe in the full range, to improve accuracy.
The up and down adjustment keys can be used to quickly adjust the speed of sound and thickness, and can quickly query the storage unit.
Tips for coupling status: Provide a coupling flag, and observe whether the coupling is normal by observing its stable state.
Ten thickness values can be stored, and the data will not be lost after shutdown, which is convenient for high-altitude and field work.
Sound velocity measurement function: directly measure the sound velocity according to the thickness of the sample block, avoiding the trouble of looking up the table or converting.
It can store the sound speed of five different materials.
Low voltage prompt.
Auto power off: Timed auto power off will help you to power off.
Full-key membrane closed operation-anti-oil pollution, improve service life. Technical Parameters
Model: TIME®2110
Measuring range: 0.75 ～ 300mm (steel, determined by probe)
Display resolution / (mm): 0.1
Sound speed adjustment range / (m / s): 1000 ～ 9999
Indication error (steel) / (mm): ± (0.1 + 1% H), H is the actual thickness of the measured object
Repeatability / (mm): 0.1
Indication stability / (mm): 0.1
Display: 4 digit LCD
Indication error (steel) / (mm) for curved surface measurement: Ф20mm × 3.0mm, (5PФ10 probe, 5PФ10 / 900 probe), Ф15mm × 2.0mm (7PФ6 probe), the indication error does not exceed ± 0.1.
Sound velocity measurement / (m / s): when H≤20mm, the measurement error does not exceed ± 1mm / H × 100%; when H> 20mm, the measurement error does not exceed ± 5%
Undervoltage indication: After the thickness gauge is turned on, when the battery voltage is 2.2V ± 0.2 V, the screen displays “BATT”.
Operating time: up to 250 hours of continuous operation
Dimensions: 124 × 68 × 27
Weight: 140g
5PФ10, 10/90 ° Measuring range (steel) / (mm): 1.2 ～ 225.0
7PФ6 Measuring range (steel) / (mm): 0.75 ～ 60.0
SZ2.5P measuring range (steel) / (mm): 3.0 ～ 300.0
Standard configuration: a host, a 5P10 probe, a couplant battery, warranty card, instrument dedicated box
Introduction
The TIME®2110 ultrasonic thickness gauge uses the principle of ultrasonic measurement, which is suitable for the measurement of the thickness of various materials that can make ultrasonic waves propagate inside it at a constant speed and can reflect from its back. This instrument can accurately measure various plates and various processed parts. Another important aspect is that it can monitor various pipelines and pressure vessels in production equipment to monitor the degree of thinning after corrosion during use. It can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields.
