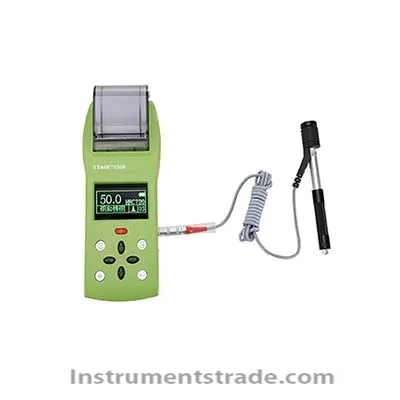

TIME® 5306 Leeb hardness tester Introduction
This instrument is based on the Leeb hardness test as a theoretical basis, digital display hardness value, small size, light weight, simple test, has the advantages of easy to carry, high inspection efficiency, slight damage to the test surface and so on. This instrument can play an important role in ensuring product quality and conducting metal material failure analysis.
Product Usage:
The measuring and testing instrument for measuring the hardness of metal materials can be used for testing metal materials with a wide range of hardness. It is especially suitable for measuring the hardness of large, heavy, unsuitable, small spaces, different directions and special parts. Features
It has the function of automatically identifying the common impact direction (except for G-type impact device).
One host can be equipped with 7 different impact devices. No need to re-calibrate when replacing, automatically identify the type of impact device.
Large-capacity storage, can store 1000 sets of measurement data, including single measurement value, average value, measurement date, impact direction, frequency, material, hardness system and other information.
The upper and lower limits of the hardness value can be set in advance, and an alarm is automatically generated when the range is exceeded, which is convenient for the user to test in batches.
The thermal micro printer can be integrated to print any number of test results to meet the needs of the scene.
The brightness of the display can be adjusted to adapt to different test environments and usage habits.
With indication soft calibration function.
You can switch to the foreign hardness conversion table for reference.
With custom material function, users can generate their own hardness conversion table through comparison test.
With USB interface, according to user requirements, it can be equipped with host computer software, and the measurement data can be transferred to the host computer in Microsoft Word or Excel format to meet the higher requirements of quality assurance activities and management. Technical Parameters
Measuring range: 170 ~ 960HLD
Indication error and indication repeatability: Indication error: ± 6HLD (at 790 ± 40HLD) Repeatability error: 6HLD (at 790 ± 40HLD)
Measuring direction: 360.
Hardness system: HL, HB, HRA, HRB, HRC, HV, HS
Display: 2.42 inch OLED display, 128 × 64 graphics dot matrix
Data storage: 1000 sets of measurement data, including relevant measurement information
Upper and lower limit setting range: same as measuring range
Working voltage: 3.7V
Charging time: about 3 hours
Charging power supply: 5V / 1A
Sustainable working time: about 20 hours
Communication interface standard: USB2.0
Dimensions: 230 * 90 * 46.5mm
Standard configuration: host (including printer), D-type impact device, standard Leeb hardness block, small support ring, charger
Optional accessories: other impact devices, various shaped support rings, upper computer software
