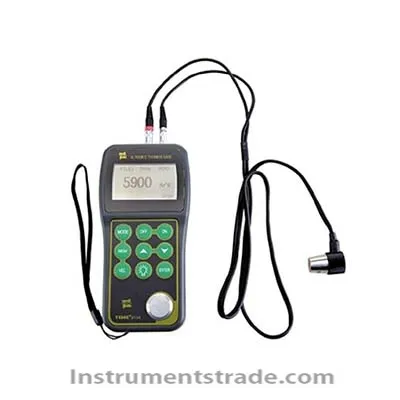

TIME® 2134 Ultrasonic Thickness Gauge Introduction
The principle of TIME® 2134 ultrasonic thickness gauge to measure thickness is similar to that of light wave measurement. The ultrasonic pulse emitted by the probe reaches the measured object and propagates in the object. When it reaches the interface of the material, it is reflected back to the probe. The thickness of the measured material is determined by accurately measuring the propagation time of the ultrasonic wave in the material. The backlight display is suitable for measurement in a poor light environment, and has a casting test function.
The TIME® 2134 ultrasonic thickness gauge uses the principle of ultrasonic measurement, which is suitable for the measurement of the thickness of various materials that can make ultrasonic waves propagate inside it at a constant speed and can be reflected from its back. This instrument can accurately measure various plates and various processed parts. Another important aspect is that it can monitor various pipelines and pressure vessels in production equipment to monitor the degree of thinning after corrosion during use. It can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields. The TIME2134 ultrasonic thickness gauge is equipped with a TSTU32 cast iron probe, which can measure the thickness of gray cast iron, PE material, nylon material and other coarse-grained materials with insufficient structure density. Features
With casting test function;
With coupling prompt and low voltage prompt;
Shutdown mode: manual and automatic shutdown functions (after three minutes of no operation);
Minimum value capture: You can choose to display the current thickness value or the minimum thickness value
Data storage: can store 500 measured values and five sound velocity values
Adjustable speed of sound: the speed of sound can be measured with a test block of known thickness;
Gain setting: with high and low gain setting function
Metric to English conversion: select mm or inch
Backlit display function, suitable for measurement in poor light environment. Technical Parameters
Model: TIME®2134
Measuring range: 5Pφ10: 1.2mm ～ 225.0mm (normal temperature)
TSTU32: 5.0mm ~ 40.0mm (cast iron)
Display resolution: 0.1mm
Indication error: ± (1% H + 0.1) mm;
Where H is the actual value of the standard thickness block.
Tube measurement lower limit: 5MHz Probe:
Ф 20 × 3.0, the indication error does not exceed ± 0.1
Sound speed adjustment range: 1000m / s-9999m / s
The measuring range of the sound velocity of back-measured with known thickness: 1000m / s ～ 9999m / s
Accuracy of sound velocity measurement: When the thickness of the test block is 20mm, the accuracy of sound velocity measurement is 1mm / H × 100%;
When the thickness of the test block is 20mm, the accuracy of sound velocity measurement is 5%
Workpiece surface temperature: -10 ℃ ～ 300 ℃
Power supply: Two No. 5 dry batteries
Power consumption: The maximum working current does not exceed 30mA (3V does not turn on the backlight)
Dimensions: 152mm × 74mm × 35mm
Weight: around 250g
Standard configuration: host, 5PФ10 probe, TSTU32 cast iron probe 4mm steel calibration block, AA type alkaline battery, coupling agent, host protective cover.
Introduction
The principle of TIME® 2134 ultrasonic thickness gauge to measure thickness is similar to that of light wave measurement. The ultrasonic pulse emitted by the probe reaches the measured object and propagates in the object. When it reaches the interface of the material, it is reflected back to the probe. The thickness of the measured material is determined by accurately measuring the propagation time of the ultrasonic wave in the material. The backlight display is suitable for measurement in a poor light environment, and has a casting test function.
The TIME® 2134 ultrasonic thickness gauge uses the principle of ultrasonic measurement, which is suitable for the measurement of the thickness of various materials that can make ultrasonic waves propagate inside it at a constant speed and can be reflected from its back. This instrument can accurately measure various plates and various processed parts. Another important aspect is that it can monitor various pipelines and pressure vessels in production equipment to monitor the degree of thinning after corrosion during use. It can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields. The TIME2134 ultrasonic thickness gauge is equipped with a TSTU32 cast iron probe, which can measure the thickness of gray cast iron, PE material, nylon material and other coarse-grained materials with insufficient structure density.
