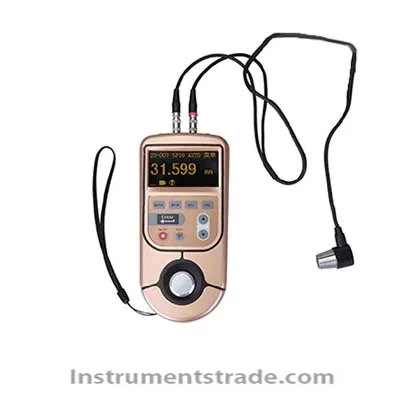

TIME® 2131 Intelligent Ultrasonic Thickness Gauge Introduction
TIME® 2131 Ultrasonic Thickness Gauge is an intelligent ultrasonic thickness detection instrument relying on the era of intelligent cloud measurement system. As a smart device, TIME® 2131 has a built-in WiFi function module. Relying on the era's intelligent cloud measurement system, it can quickly connect to an external WiFi network, and can realize remote control, data sharing, data analysis, and flexible reports through the software platform on the mobile phone and computer. Intelligent functions such as printing, remote video assistance, remote upgrade of device-side software, online upgrade of APP, message push, device location management, online help and after-sales support make TIME® 2131 ultrasonic thickness gauge a time-dependent Intelligent ultrasonic thickness detection instrument of intelligent cloud measurement system. As a smart device, TIME® 2131 has a built-in WiFi function module. Relying on the era's intelligent cloud measurement system, it can quickly connect to an external WiFi network, and can realize remote control, data sharing, data analysis, and flexible reports through the software platform on the mobile phone and computer. Intelligent functions such as printing, remote video assistance, remote upgrade of device-side software, online upgrade of APP, message push, device location management, online help and after-sales support have made the instrument use, maintenance, service, etc. The upgrade and expansion of the function is rich and powerful. As an ultrasonic thickness testing equipment, TIME® 2131 is a high-end thickness gauge with stylish design, rich functions and excellent performance. Features
The instrument can determine whether the probe is inserted, can automatically identify the probe, and automatically calibrate the probe.
The instrument can dynamically compensate for measurement errors caused by probe changes and coupling differences, improving measurement accuracy.
The instrument displays the coupling status in real time, which is convenient for users to adjust the coupling conditions. Using OLED display, active light, high contrast and brightness, suitable for outdoor sunlight applications.
With scanning measurement mode, it can achieve a measurement rate of 20 times per second.
With multiple measurement modes (automatic, transmit-echo, interface-echo), it can meet a variety of measurement needs.
It can store 30 thickness files, and each file can store 100 thickness values.
The automatic storage function can be turned on to automatically store the last measured value in each coupled measurement process.
Support online upgrade, no need to return to the factory, users can upgrade the instrument firmware through WIFI and mobile phone App. Technical Parameters
Model: TIME®2131
Measuring range (steel): 5PФ10, 5PФ10 / 90 Probe: 1.2mm ~ 225.0mm
7PФ6 probe: 0.75mm ~ 60.0mm
ZW5P probe (high temperature 300 °): 4.0mm ~ 80.0mm
TSTU32 probe: 3.0mm ~ 300.0mm
Indication error (steel): ZW5P, TSTU32: ± 0.10 (H <10.00mm), ± (1% H + 0.01) mm (H≥10.00mm)
5PФ10, 5PФ10 / 90, 7PФ6: ± 0.05 (H <10.00mm), ± (0.5% H + 0.01) mm (H≥10.00mm)
Repeatability (steel): ZW5P, TSTU32: 0.10mm; 5PФ10, 5PФ10 / 90, 7PФ6: 0.03mm
Indication stability (steel): ZW5P, TSTU32: 0.10mm; 5PФ10, 5PФ10 / 90, 7PФ6: 0.05mm
Indication error of curved wall thickness measurement (steel): ± 0.1mm
Sound speed adjustment range (m / s): 508m / s ～ 18699m / s
Thickness indication error of changing sound velocity: The difference indication error should not exceed ± 0.5mm
Measurement modes: automatic, transmit-echo, interface-echo
Scanning mode: You can choose to open the scanning measurement mode 20 times per second
Display resolution: 0.1mm, 0.01mm, 0.001mm
Special display: minimum, maximum, average
Alarm: upper limit, lower limit, upper and lower limit alarm function
Two-point calibration: with two-point calibration
Metric system: Metric system display and switch
Battery level indicator: Indicates the battery level
Storage: 6 sound velocity values and 3000 thickness values
Communication: Can communicate via USB port or WIFI
Automatic shutdown: You can choose to turn on the automatic shutdown function with no action and no measurement for 2 minutes
Automatic storage: the function of automatically storing the last measured value of each coupling can be selected
Multilingual version: Chinese and English version
Host working environment: 0 ℃ ～ 40 ℃ 90% RH
Host storage environment: -25 ℃ ～ ﹢ 60 ℃ 90% RH
Power supply: Two AA alkaline dry batteries
Working power supply: 60mA (3.0V)
Standard configuration: host, 5PФ10 probe, 4mm steel calibration block, AA type alkaline battery, coupling agent, host protective cover.
