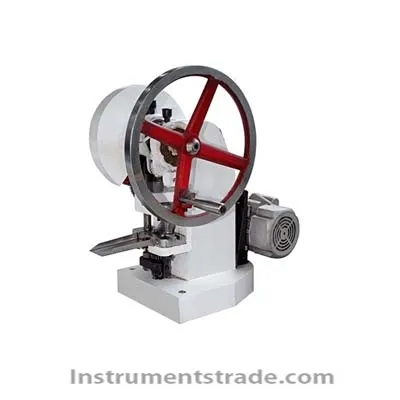

TDP-5 laboratory single punch tablet machine

Product ID:SYZXyp011

Price: Please inquire PDF Format
Supply Ability:200SETS/MONTH
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberTDP-5
    Brand NameSHTF
    Payment TermsT/T, paypal
    Introduction:
    This machine is used to press all kinds of granular raw materials into round discs, which is suitable for laboratory trial production and small-scale production. It is characterized by a small bench-top electric continuous tablet machine that can also be hand-cranked. Only one die can be installed on the machine. The filling depth of the material and the thickness of the tablet can be adjusted.
    Technical Parameters:
    Model Number: TDP-5
    Maximum tableting pressure (kN): 50
    The maximum tablet diameter (mm): 20
    The maximum filling depth (mm): 16
    Tablet thickness (mm): 6
    Production capacity (film/hour): about 6000
    Motor Power (kW): 0.75
    Overall dimensions (mm): 700*400*800
    Host Weight (kg): 125

  • Introduction:
    This machine is used to press all kinds of granular raw materials into round discs, which is suitable for laboratory trial production and small-scale production. It is characterized by a small bench-top electric continuous tablet machine that can also be hand-cranked. Only one die can be installed on the machine. The filling depth of the material and the thickness of the tablet can be adjusted.
