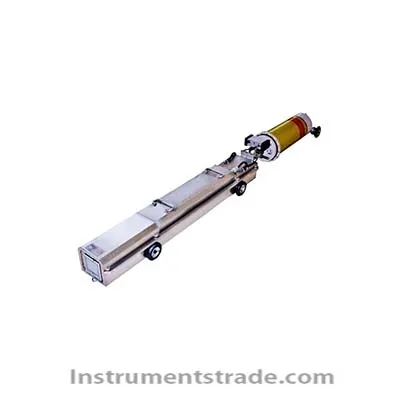

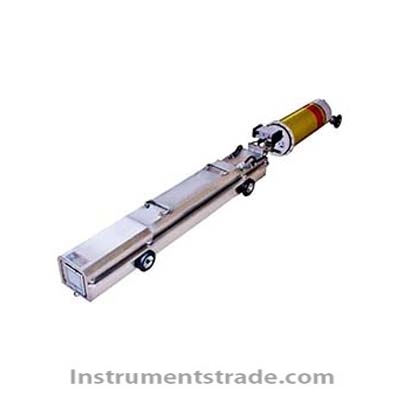

Introduction: TD series X-ray pipe crawler adopts magnetic positioning control guiding method (accurate positioning ± 5mm). It has the characteristics of small size, simple operation, modular structure design, simple and easy to use, etc. It also has external control, automatic training machine, two-wheel drive, four-wheel drive, automatic switching according to slope, constant power output (the blackness of the first and last pieces are consistent with ) and other functions. The high efficiency boost module makes it far more efficient than other similar equipment. The optional standard tube head (ultra-small size) greatly enhances the versatility and interchangeability, and the failure rate is significantly reduced. The whole car is made of high quality stainless steel and advanced manufacturing technology to make it more beautiful and light. It has protection functions such as under-voltage, resistance, water, over-current, over-voltage, over-temperature detection, and under-humidity. The cause of the fault is displayed on the touch screen for user identification and maintenance. According to the specific requirements of the user, various types of pipe crawlers can be customized. Technical Parameters
Light pipe diameter range Φ273mm—Φ710mm
Maximum penetration thickness 24mm
Maximum output tube voltage 200Kv
Maximum output tube current 3mA
Radiation angle 360°×38°
Operating temperature range -40°～70°
Relative humidity ≤90%
Battery energy 110V, 10Ah
Motor Power 150W continuous
Pre-exposure delay 24s
Exposure time 1 to 300 seconds (continuously adjustable)
Gradeability ≤27°
Positioning error ±5mm
Creeping distance 5Km
Crawling speed 15m/min～18m/min
Turning radius ≥7D
