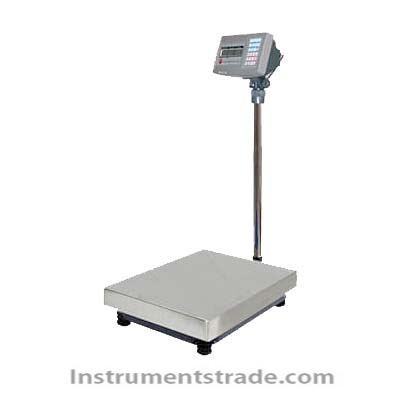

TCS xA electronic platform scale Introduction: The Wholesale Market Information Transaction Traceability Scale (Ordinary Type) is a traceability platform scale designed and manufactured specifically for wholesale markets and other retail terminals. Powerful and easy to operate, capable of meeting various needs for traceability. characteristic: 1. Anti cheating function 2. Wireless and wired networking methods 3. Support remote network and on-site hardware upgrades 4. Support one-dimensional and two-dimensional code printing 5. Multiple interfaces, strong scalability, and the ability to implement card payment functions 6. External rechargeable battery with long battery life 7. Can be connected to various specifications and sizes of platform scales Technical parameters: Weighing: 60kg/150kg/300kg/600kg/1000kg/2000kg optional Division value: 20g/50g/100g/200g/500g/1kg Accuracy level: Level III Metrological certification: possessing a metrology license Main processor: PIC32 series (32-bit, MIPS4K, 80MHz), with better performance than ARM7 Memory: 4M， Scalable to 16M Display: High brightness green text LCD display Display digit: 22 digits Chinese character display: Display ≥ 20 Chinese characters Button: 40 keys Total PLU count: 5990, expandable to 10000 Printing method: Thermal printing Printing speed: 60mm/s Printing paper width: 56mm Printing paper roll diameter: supports 30-48mm Printing barcodes: supports one-dimensional and two-dimensional barcode printing Print head lifespan: 50km Wireless LAN: Built in wired network/wireless WIFI module Non contact card: supports non-contact IC card, internal and external optional Offline local data storage: Use FIFO to store 10000 traceability records. Can be expanded to 30000 pieces Off network data transfer: All traceability system data can be transferred using transfer tools such as USB drives Standard electronic scale function: equipped with universal electronic scale functions such as peeling, accumulation, and statistics Mandatory printing and recording function: Mandatory printing and recording of weighing results to avoid users not printing
Introduction: The Wholesale Market Information Transaction Traceability Scale (Ordinary Type) is a traceability platform scale designed and manufactured specifically for wholesale markets and other retail terminals. Powerful and easy to operate, capable of meeting various needs for traceability.
