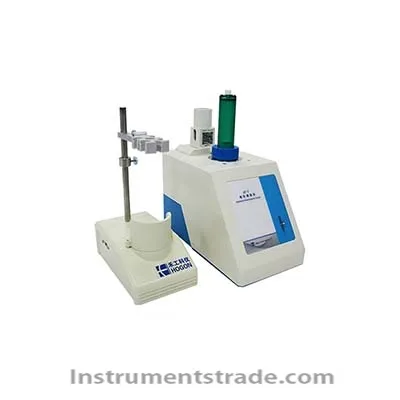

TCL-1B chloride ion special automatic potentiometric titrator Introduction:
TCL-1B automatic potentiometric titrator is a special instrument for the determination of chloride ion in cement. The instrument is used to meet the chloride ion potentiometric titration method in GB/T176-2017 "Cement Chemical Analysis Method", which is mainly used in various inspection institutions and cement. Enterprises, concrete mixing plants, research institutes, laboratories, etc. Features:
1. Connect to the computer through USB, control the instrument and collect data from the computer.
2. The instrument supports two kinds of titration modes: chloride ion content determination and silver nitrate calibration, which conforms to GB/T176-2017 "Cement Chemical Analysis Method";
3. The instrument is equipped with a silver electrode, a chloride ion indicating electrode and a double salt bridge saturated calomel electrode;
4. The titration record can be stored in PDF format, and there is no upper limit for the number of stored records;
5. Real-time display of titration curves and differential curves, custom formula editing and custom result units.
6. Support the rights management function, you can customize the user name, password, permission grouping, etc. to ensure the confidentiality of the data; Technical Parameters:
Potential measurement range: -2000.0mV~2000.0mV, resolution: 0.1mV)
pH measurement range: 0.000~14.000pH, resolution: 0.01pH
Temperature measurement range: 0~100°C, resolution: 0.1°C
Burette volume: 20mL (standard) Measuring tube error: 0.15%
Titration accuracy: 3ul (20ml burette)
Titration type: acid-base titration, redox titration, precipitation titration, complexometric titration, non-aqueous titration
Titration mode: dynamic titration, equal titration, fixed endpoint
End point mode: intelligent differential judgment
GLP specification: with user management, registration operator; traceability of information integrity;
Electrode interface: measuring electrode interface, reference electrode interface, temperature electrode interface.
Display and control: external computer control, real-time display of titration curve, measurement results
Firmware upgrade: PC software can be upgraded with program version, allowing instrument function expansion and personalization requirements
Pipeline: All pipes are made of highly chemical resistant material to ensure experimental accuracy
Ambient temperature: 5°-40°
Ambient humidity: ≤80%
TCL-1B automatic potentiometric titrator is a special instrument for the determination of chloride ion in cement. The instrument is used to meet the chloride ion potentiometric titration method in GB/T176-2017 "Cement Chemical Analysis Method", which is mainly used in various inspection institutions and cement. Enterprises, concrete mixing plants, research institutes, laboratories, etc.
