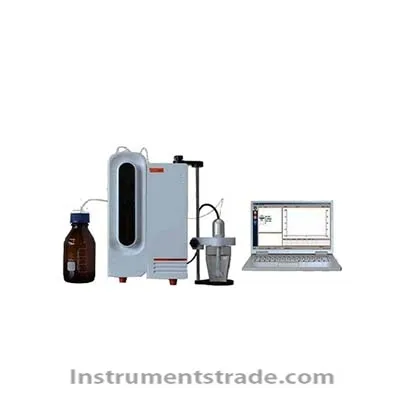

T950 automatic stop titrator Introduction:
The T950 Automatic Permanent Stop Titrator is a laboratory equipment for the analysis of sulfonamides, vitamin C and other samples by means of permanent stop titration. The instrument is operated by PC-side control software and automated batch processing of samples by a 16-bit autosampler. Save time in the lab to stop the titration experiment. Features:
1. Add liquid standard burette 4 kinds of specifications can be arbitrarily selected, the experimental application is more targeted; standard 10mL, optional 1mL, 5mL, 25mL.
2. Built-in liquid filling unit, multiple protection reagents overflow danger.
3. Multiple self-test functions simplify operation and avoid misuse.
4. Powerful application editing function, the user can generate a special titration mode according to the experiment and store it, and the next key click.
5. Network interface / USB interface, with network CAN bus communication function.
6.• An external 16-bit autosampler is available for easier multitasking.
7. User-level audit trails, electronic signatures, and data tamper-proof output that meet 21 CFR Part 11 requirements.
8. External 16-bit autosampler, multi-tasking operation is simpler, equipped with spray cleaning function.
9. Configurable T9605 wireless wifi module, computer and machine wireless connection, remote control instrument. Technical Parameters:
Polarization current range and accuracy: (0~0.199)μA 0.001μA
(0～1.999)μA 0.01μA
(0~19.99) μA 0.1μA
(0~199.9) μA 1μA
Polarization voltage: 100mV, 50mV, 30mV
Polarization current detection error: ±2.5% FS
Instrument control titration sensitivity: ±5% FS
Polarization voltage error: ±10mV
Repeatability: 0.2%
Communication method: 2 USB, 232 serial port, Ethernet, with network CAN bus communication function
Burette specifications: 1mL 5mL 10mL 25mL
Burette resolution: 1/48,000
Burette rehydration time: 16 seconds (100% filling speed)
Terminal Control: PC
Electrode interface type: polarized electrode interface
Audit trail: available
Electronic signature: available
Data tamper resistance:
User rating management: Level 3
Sample number of injectors: 16 (optional 16-bit injector)
Introduction:
The T950 Automatic Permanent Stop Titrator is a laboratory equipment for the analysis of sulfonamides, vitamin C and other samples by means of permanent stop titration. The instrument is operated by PC-side control software and automated batch processing of samples by a 16-bit autosampler. Save time in the lab to stop the titration experiment.
