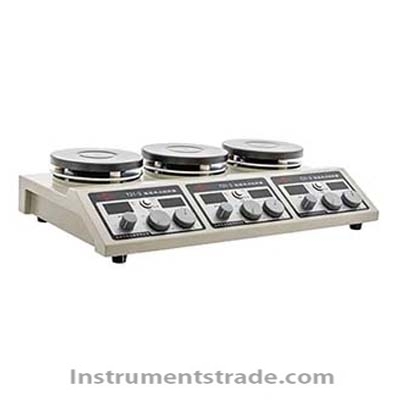

Introduction: The T21-3 thermostatic magnetic stirrer is individually controlled by three stations. The constant temperature has liquid temperature setting and measurement and table temperature setting and control. Greatly overcome the temperature overshoot during heating. The speed digital display uses pulses to count, so the speed display is true and correct. Stirring operation: put the container with the solution in the center of the workbench (ie heating plate furnace), and put a suitable stirrer in the container (must be sucked into the center, flat-bottomed container with cylindrical stirrer, spherical container with spinning Stirrer) can be turned on and run. The container should not be made of iron or materials related to magnetism, the bottom thickness should not be greater than 10mm, and it should be smooth. The stirring speed should be gradually accelerated from slow to fast, too fast to make the stirrer escape. If the stirrer is not in the center of the container, you can turn on the stirrer first to turn it off when it is idling. The stirrer will automatically be sucked into the center. Technical parameter: Power source: Ac220V±10% Working method: continuous Speed: 50～1700r/min Motor torque: 40mN•M Mixing capacity (water): 2L (single station 5L) Heating power: 600W X3 Table temperature setting: room temperature～330℃ Liquid temperature setting: room temperature~250℃ Temperature control accuracy: ±1℃ Digital display: temperature, speed display Countertop safety protection temperature: 400℃ Sensor index number: PT100 Heating plate size: Φ140mm black-plated stainless steel surface Dimensions: 500×300×110mm Weight: 8.5kg Accessories: one long and short meter rod, one set of temperature sensor and bracket, three sets of stir bar
Introduction: The T21-3 thermostatic magnetic stirrer is individually controlled by three stations. The constant temperature has liquid temperature setting and measurement and table temperature setting and control. Greatly overcome the temperature overshoot during heating. The speed digital display uses pulses to count, so the speed display is true and correct. Stirring operation: put the container with the solution in the center of the workbench (ie heating plate furnace), and put a suitable stirrer in the container (must be sucked into the center, flat-bottomed container with cylindrical stirrer, spherical container with spinning Stirrer) can be turned on and run. The container should not be made of iron or materials related to magnetism, the bottom thickness should not be greater than 10mm, and it should be smooth. The stirring speed should be gradually accelerated from slow to fast, too fast to make the stirrer escape. If the stirrer is not in the center of the container, you can turn on the stirrer first to turn it off when it is idling. The stirrer will automatically be sucked into the center.
