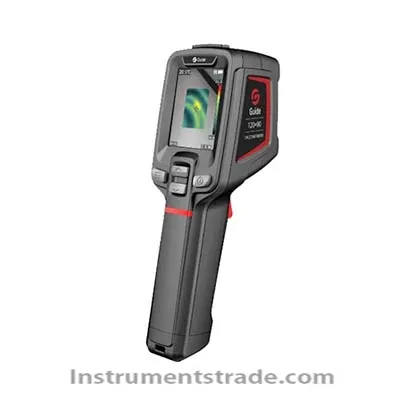

T120V entry-level infrared thermal imager Introduction: The T120 series entry-level infrared thermal imager is a widely used non-contact temperature measurement tool. It perfectly solves various problems encountered during the use of traditional thermometers, making your testing work safer, more intuitive, and efficient. This thermal imager adopts Gaode's self-developed 120x90 wafer level infrared module, which can read temperature data of 10800 pixels at once, facilitating large-scale inspection and effectively preventing missed detections. Technical parameters: Image and Optics Detector type: uncooled vanadium oxide, 7.5~14μm Infrared resolution: 120 × 90@17 μm NETD： 60mK Infrared frame rate: 25Hz/9Hz Focal length: 2.28mm Field of view angle: 50 °× 38 ° Spatial resolution: 7.46mrad Minimum imaging distance: 0.5m Distance coefficient ratio: 130:1 Focusing method: no focusing required analysis Temperature measurement range: supports automatic gear switching:- 20°C~150°C, 100°C~400°C Temperature measurement accuracy: ± 2 ° C or ± 2%, whichever is greater Analysis object: Center point, fixed temperature measurement area, choose one of three options (small/medium/large) Temperature threshold alarm: supports image alarm Temperature measurement parameters: emissivity, reflection temperature, target distance
Introduction: The T120 series entry-level infrared thermal imager is a widely used non-contact temperature measurement tool. It perfectly solves various problems encountered during the use of traditional thermometers, making your testing work safer, more intuitive, and efficient. This thermal imager adopts Gaode's self-developed 120x90 wafer level infrared module, which can read temperature data of 10800 pixels at once, facilitating large-scale inspection and effectively preventing missed detections.
