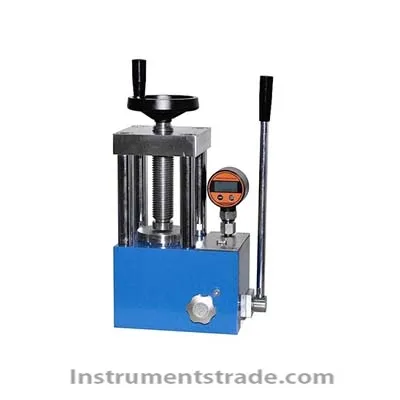

SYP-24B Manual Powder Tablet Press

Product ID:SYZXyp018

Price: Please inquire PDF Format
Supply Ability:20SETS/MONTH
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberSYP-24B
    Brand NameSHXN
    Payment TermsT/T, paypal
    Introduction:
        SYP series one-piece structure manual powder tablet press is a new generation of hydraulic tablet press developed by Shanghai Xinnuo Instrument Co., Ltd. to meet the market demand. The series of hydraulic press has undergone a comprehensive improvement and upgrade, using imported pressure sensor sealing structure, cylinder, The integrated design of the oil pool, main board, and piston without seals has a better sealing effect, which solves the oil leakage problem of the machine and has the advantages of smaller size, lighter weight, larger working space, and more reliable pressure stability; The cleaning process of the tablet press in the future is also more convenient and convenient for the customer to perform instrument maintenance.
        SYP-24B manual powder tablet press is an accessory of infrared spectrophotometer and is used to compress powders of potassium bromide (KBr), sodium chloride (NaCl) and other materials into various specifications for spectrum analysis. At the same time, it also applies to other work situations that require corresponding pressure. SYP-24T manual hydraulic press has a rapid pressure boost, easy operation, and a glass protective cover, which can make the whole experiment process more stable. Can be widely used in new materials, superconducting, powder ceramics, new power supplies, batteries, building materials, metallurgy powder and other fields, and can be used with calcium and iron analysis, infrared spectroscopy (IR), X fluorescence (XRF) analytical instruments.
    Technical Parameters:
    Model: SYP-24B
    Glass Shield: None
    Pressure gauge type: Double scale pressure indicator (Pressure pressure without conversion)
    Pressure range: 0-24T (0-34MPa)
    Piston Diameter: Φ95mm Chrome Plated Cylinder
    Integral structure: Main board, oil pool, piston without sealing connection, integrated structure design
    Pressurization method: Manual
    Maximum piston stroke: 30mm
    Table diameter: 110mm
    Working space: 85×85×170mm
    Pressure stability: 1MPa/10min
    Dimensions: 270×190×450mm
    Weight: about 45kg

  • Introduction:
        SYP series one-piece structure manual powder tablet press is a new generation of hydraulic tablet press developed by Shanghai Xinnuo Instrument Co., Ltd. to meet the market demand. The series of hydraulic press has undergone a comprehensive improvement and upgrade, using imported pressure sensor sealing structure, cylinder, The integrated design of the oil pool, main board, and piston without seals has a better sealing effect, which solves the oil leakage problem of the machine and has the advantages of smaller size, lighter weight, larger working space, and more reliable pressure stability; The cleaning process of the tablet press in the future is also more convenient and convenient for the customer to perform instrument maintenance.
        SYP-24B manual powder tablet press is an accessory of infrared spectrophotometer and is used to compress powders of potassium bromide (KBr), sodium chloride (NaCl) and other materials into various specifications for spectrum analysis. At the same time, it also applies to other work situations that require corresponding pressure. SYP-24T manual hydraulic press has a rapid pressure boost, easy operation, and a glass protective cover, which can make the whole experiment process more stable. Can be widely used in new materials, superconducting, powder ceramics, new power supplies, batteries, building materials, metallurgy powder and other fields, and can be used with calcium and iron analysis, infrared spectroscopy (IR), X fluorescence (XRF) analytical instruments.
