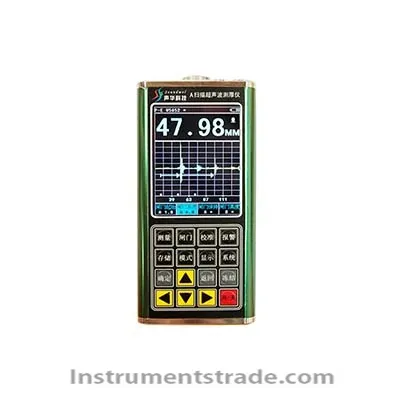

Features: 1.100 M sampling rate of the data processing ability 2.3.5 1/4 inch VGA TFT color LCD display, the user can set the screen color itself 3. You can also show A scanning waveform and the thickness value 4. Through measuring the workpiece surface coating thickness values 5. Half wave of positive and negative half wave, rf three display mode 6. The pulse echo mode gain adjusting range for 18 db and 70 db 7. Echo - echo model can automatically adjust the gain has reached the best effect of measurement 8. Automatic v-shaped path correction, early taste of the nonlinearity of twin probe 9. The user can manually make probe v-shaped path correction table has reached to more precise measurements. 10. Alarm mode can be set according to the minimum and maximum Technical parameters: Measuring range (pulse echo mode) : 0.65 mm to 508 mm (steel, is determined by the probe) Through the coating Measuring range (echo - echo mode) : 3 mm ~ 50 mm (steel, is determined by the probe) Pipe measurement limit: Φ 15 mm x 1.0 mm (1.0 MHz, Φ 6 mm probe) Φ 10 mm x 1.2 mm (1.2 MHz, Φ 6 mm probe) Display precision: 0.001 mm (H < 10 mm); 0.01 mm (10 mm or less H < 100 mm); 0.1 mm (H 100 mm or higher) Accuracy: + 0.5% (H + 0.05) mm Material velocity: 200 ~ 20000 m/s Receive bandwidth: 1 MHZ ~ 10 MHZ (3 db) Power supply: 3 section 1.5 V alkaline battery or nickel cadmium battery. 3 section 1.2 V Working temperature: - 10 ~ 50 ℃﹢ Working humidity: 20% ~ 90% RH
