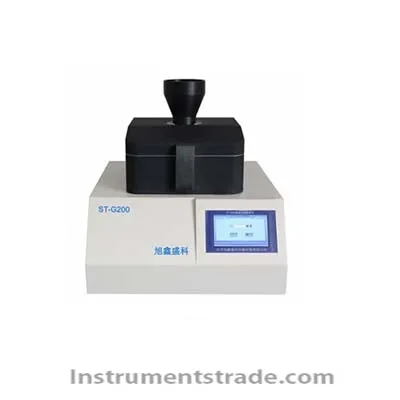

ST-G200 high speed cutting pulverizer Introduction
ST-G200 high-speed cutting pulverizer is suitable for soft, brittle, medium-hard, fibrous and other samples. It can be prepared gently and quickly in a short time. It can be freeze-ground for the preparation of heat-sensitive samples. A wide range of optional accessories make it a versatile instrument for a wide range of applications.
Features
1. LCD touch screen operation mode, easy to operate
2 .Fast and efficient two-stage crushing, one-step coarse crushing and fine crushing
3. Dry grinding, freeze grinding
4 .Low noise, stable operation and easy cleaning
5. Anti-splashing feed inlet, safety switch and mechanical lock, double guarantee the safety of the experimenter
6 .A variety of materials and specifications of accessories are available to ensure diversified applications
7 .Speed can be set, easy to operate
8 .The instrument has anti-overload function
9 .The instrument can be equipped with automatic sampler and cyclone separator for large sample preparation Technical Parameters
Applications: Agriculture Chemistry / Synthetic Materials Pharmaceuticals / Metallurgy Engineering / Electronics Building Materials Environment / Resource Recycling Bio Food
Sample characteristics: soft, medium-hard, brittle, fiber-containing
Crushing principle: shearing, friction
Maximum injection size: < 10 mm
Discharge size: ≤0.1mm
Speed: 5000-20000 rev / min adjustable
Rotary knife type: 6 tooth rotary knife / 12 tooth rotary cutter / 24 tooth rotary cutter
Grinding kit material: stainless steel, titanium
Screen size: 0.20/0.50/0.80/1.00/1.50/2.00/4.00mm
Collection tray volume: 1000ml standard collection tray
Cyclone separator collection bottle: 50ml-5L optional
Instrument drive: three-phase AC motor with frequency converter
Instrument power supply: 220V 50HZ
Instrument power: 800 W
Body size: 358x 280x 280 mm (height x width x depth)
Instrument net weight: 22 kg
Introduction
ST-G200 high-speed cutting pulverizer is suitable for soft, brittle, medium-hard, fibrous and other samples. It can be prepared gently and quickly in a short time. It can be freeze-ground for the preparation of heat-sensitive samples. A wide range of optional accessories make it a versatile instrument for a wide range of applications.
