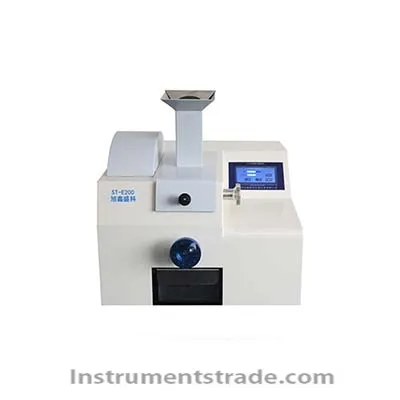

ST-E200 desktop jaw crusher Introduction
The ST-E200 Benchtop Jaw Crusher is a professional instrument for the preparation of laboratory solid samples. It has the characteristics of low noise, fast breaking speed and fast particle size adjustment device. Rapid brittle fracture and pre-grinding of materials such as brittle, hard, medium-hard, and toughness, such as ore, core, rock, slag, soil, ceramics, brittle materials, dry shells, dried sea cucumber and other samples. The machine can adjust the jaw crushing gap by zero point correction to achieve the optimal crushing effect. Features
1.Desktop design saves experimental space
2.Zero point correction to compensate for wear and ensure the accuracy of sample fineness
3.A variety of different materials of smashed slabs can be selected to meet different experimental requirements
4.The instrument has double safety lock protection. When the feed hopper is opened or the collection box is not installed, the instrument does not run to ensure the safety of the operator.
5.Feed hopper has anti-back splash design to prevent sample splash
6.The feeding hopper can be turned over, can be manually disassembled, and the crushing chamber is easy to clean.
7.With reverse function to ensure the normal operation of the instrument Technical Parameters
Feeding particle size: ≤45mm
Zero point - calibration: yes
Discharge size: ≤0.5mm
Speed: 100-1000rpm adjustable
Funnel: can be flipped
Sample size adjustment range: 0-12mm (adjustable)
Motor power: 1.1kw
Power: 220V 50Hz
Grinding kit material: high manganese steel, stainless steel, joint steel, zirconia, tungsten carbide, industrial plastic
Net weight: 70kg
