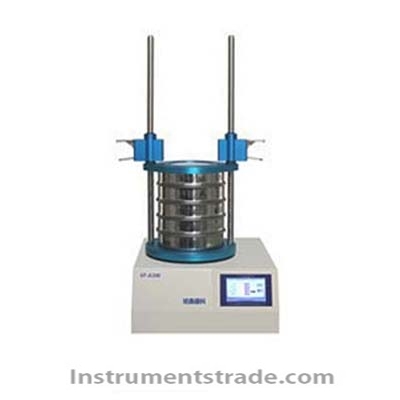

ST-A200 vibrating screen Introduction
ST-A200 vibrating screen is a new generation of laboratory vibrating screen. It uses electromagnetic drive to generate three-dimensional throwing motion effect. It can be used with different specifications of analytical sieves to meet the particle size classification of powders, particles, chunks and suspended solids. The measurement has the advantages of high measurement accuracy, reproducibility of screening results, and low noise. It is widely used in particle analysis in soil, pharmaceutical, metallurgy, geology, coal, grain and other industries. The screening results are efficient and reliable, and are ideal for research and production, quality control and R&D.
Feature
1.Advanced and efficient electromagnetic drive, precise and controllable amplitude and frequency to ensure accurate and high-efficiency screening accuracy
2.LCD touch screen operation mode, full-featured, wide range of applications
3.One machine for both dry and wet screens
4.The instrument performance is stable, quiet operation, no maintenance
5.The top cover has a visual observation window for easy observation and monitoring of the screening process
6.Memory storage 10 screening programs
7.Analytical sieve integrated stamping, accurate mesh size
8.Three-dimensional throwing movement mode to ensure that the sample is evenly scattered throughout the mesh surface
Technical Parameters
Sample characteristics: powder, loose pellets, suspended solids
Time display: 1s-99min59s
Measuring range: 20μm-30mm
Amplitude: 0-3mm (continuously adjustable, liquid crystal display)
Storage program: 10 kinds of storage programs
Dry sieve, wet sieve: can
Intermittent time: 1s～99min59s (continuously adjustable, liquid crystal display)
Intermittent running time: 1s~99min59s (continuously adjustable, liquid crystal display)
Maximum load: 3kg
Maximum number of levels: 9
Analytical sieve diameter: 100mm / 150mm / 200mm / 203mm
Movement form: three-dimensional throwing movement
Power data: AC 220V±10% 50Hz
