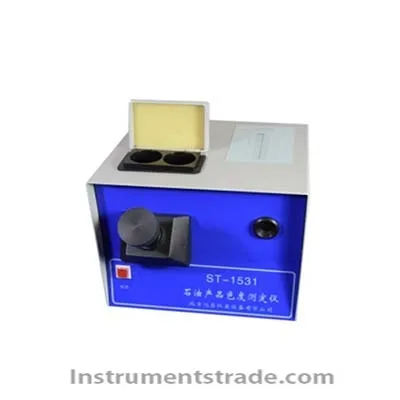

ST-1531 petroleum colorimeter Introduction
ST-1531 petroleum colorimeter conforms to the SH / T0168 standard, and is suitable for measuring the color of various petroleum products such as lubricating oil, kerosene, diesel, etc. The measuring method injects a sample of petroleum product to be measured into a colorimetric tube, and then compares it with a standard color chip to determine its chromaticity and color number. Corresponds to the 16 color numbers of GB / T6540. Widely used in petroleum, chemical, power, commodity inspection, colleges, scientific research and other departments. Features
1.The instrument consists of a standard color disc, observation optical lens, light source, and colorimetric tube
2.Standard color wheel rotation is manually adjusted
3.Optical eyepiece has the ability to adjust light and focus
4.The light source can illuminate the color glass and colorimeter tube of the standard color plate evenly after filtering
5.Use magic sand milk shell bulb as light source
6.Simple operation, reasonable structure, beautiful appearance Technical Parameters
Applicable standards: SH / T0168 GB / T6540
Colorimeter tube inner diameter: Φ32mm high 120-130mm
Standard light source: 100W
Temperature: 2750K ± 50K
Chroma: 1 ～ 25
Standard color wheel: There are 26 Φ14mm light holes, of which 25 are equipped with standard color glass plates of 1-25 color numbers in sequence.
Ambient temperature: 5 ℃ ～ 45 ℃
Relative humidity: 10% ～ 80% Rh
Power supply voltage: 220V ± 10% 50Hz
Introduction
ST-1531 petroleum colorimeter conforms to the SH / T0168 standard, and is suitable for measuring the color of various petroleum products such as lubricating oil, kerosene, diesel, etc. The measuring method injects a sample of petroleum product to be measured into a colorimetric tube, and then compares it with a standard color chip to determine its chromaticity and color number. Corresponds to the 16 color numbers of GB / T6540. Widely used in petroleum, chemical, power, commodity inspection, colleges, scientific research and other departments.
