SP-2120 mine gas analysis specific gas chromatography

Product ID:FSqi031

Price: US$1.00 ~ US$0.00 PDF Format
Supply Ability:20sets/mon
Port:Shenzhen
share:
  • Product Introduction
  • Consulting
  • Model NumberSP-2120
    Brand NameYIMA
    Payment TermsT/T, paypal
    Instrument Description

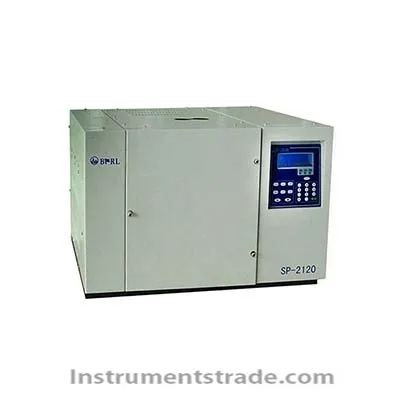

    SP-2120 mine gas analysis by gas chromatography dedicated host , efficient column methane conversion , thermal conductivity detector and a flame detector hydrochlorothiazide and other components , using computer control , automatic switching valve and detector signals automatic switching , is equipped with four -way airflow sensor , through the data line connected to the computer , from mine gas chromatography workstation dedicated signal acquisition and data processing .
    Based on the principles of chromatography instruments manufactured by switching ten -way valve can be realized on a mixture of h2, o2, n2, ch4, co, co2, c2h4, c2h6, c2h2 consisting of rapid separation and high sensitivity detection . This instrument is forecast for the coal fire , fire safety design of special chromatograph analysis can mine gas atmosphere , fire predict gas explosion hazard degree of judgment , capable of full gas outburst gas component analysis . The instrument has a high resistance to shock and vibration resistance, can be applied to car .
    Features
    1. The use of beam tube application technology , manual and autosampler can be arbitrarily chosen , with 32 -channel sampling system can achieve continuous loop sampling and analysis , and automatically print analysis reports , data can be transmitted over the network .
    2. The database can be edited in history , able to sampling sites and sampling time for the order to generate reports in two forms :
    Can also be user needs, design freely according to the report form ;
    3. Four independent temperature control system : oven , reformer , tcd detector box and fid detector box can be independently controlled temperature .

    4. Self- diagnostic function : boot the various parts of the instrument can be self- diagnose electrical units , and timely diagnostic results show ..
    5. The thermal conductivity detector and flame detectors simultaneously dihydrotestosterone , three signal channel simultaneous acquisition ;
    6. Double reformer system , which greatly improves the efficiency and accuracy of the analysis ;

    7. A single injection within seven minutes to complete the full extent of component analysis and explosion hazard identification, analysis time is short ;
    8. The display is equipped with four gas flow , easy to operate ;
    9. The use of military field equipment standard car design, high shock and vibration resistance , can be used for emergency onboard laboratory.



  • Instrument Description
    SP-2120 mine gas analysis by gas chromatography dedicated host , efficient column methane conversion , thermal conductivity detector and a flame detector hydrochlorothiazide and other components , using computer control , automatic switching valve and detector signals automatic switching , is equipped with four -way airflow sensor , through the data line connected to the computer , from mine gas chromatography workstation dedicated signal acquisition and data processing .
    Based on the principles of chromatography instruments manufactured by switching ten -way valve can be realized on a mixture of h2, o2, n2, ch4, co, co2, c2h4, c2h6, c2h2 consisting of rapid separation and high sensitivity detection . This instrument is forecast for the coal fire , fire safety design of special chromatograph analysis can mine gas atmosphere , fire predict gas explosion hazard degree of judgment , capable of full gas outburst gas component analysis . The instrument has a high resistance to shock and vibration resistance, can be applied to car .
