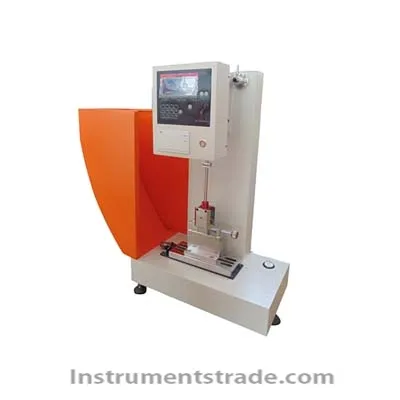

Introduction: SMT-3002I cantilever impact testing machine for the determination of plastic, nylon, glass reinforced, ceramics, cast stone, plastic electrical appliances, insulating materials and other non-metallic materials, impact toughness. Is a research institutes, universities, non-metallic materials manufacturers quality inspection of commonly used equipment, the aircraft is a simple structure, easy operation, high precision test equipment. The machine meets ISO179 --- 92, GB1043 -93 standard requirements. Digital impact testing machine adopts high-precision encoder technology, with the characteristics of high precision, good stability and large measuring range. The digital measurement shows the impact strength and the average value, the energy loss is automatically corrected, and the test report and other functions are printed. The machine complies with international standards ISO180-1992 "Determination of the impact strength of plastic - rigid materials cantilever beam"; GB / T1843-1996 "rigid plastic cantilever impact test method", the mechanical industry standard JB / T8761-1998 "plastic Izod impact test machine. " Technical Parameters: 1, the impact speed: 3.8m / s; 2, pendulum energy: 5.5J, 11J, 22J 3, pendulum Yang: 150 4, pendulum center to impact the blade distance: 335mm 5, impact blade to the jaw on the plane distance: 22mm 6, fillet radius: R = 0.8mm 7, the sample type in line with GB1843-80 and ISO180-82
Introduction: SMT-3002I cantilever impact testing machine for the determination of plastic, nylon, glass reinforced, ceramics, cast stone, plastic electrical appliances, insulating materials and other non-metallic materials, impact toughness. Is a research institutes, universities, non-metallic materials manufacturers quality inspection of commonly used equipment, the aircraft is a simple structure, easy operation, high precision test equipment. The machine meets ISO179 --- 92, GB1043 -93 standard requirements. Digital impact testing machine adopts high-precision encoder technology, with the characteristics of high precision, good stability and large measuring range. The digital measurement shows the impact strength and the average value, the energy loss is automatically corrected, and the test report and other functions are printed. The machine complies with international standards ISO180-1992 "Determination of the impact strength of plastic - rigid materials cantilever beam"; GB / T1843-1996 "rigid plastic cantilever impact test method", the mechanical industry standard JB / T8761-1998 "plastic Izod impact test machine. "
