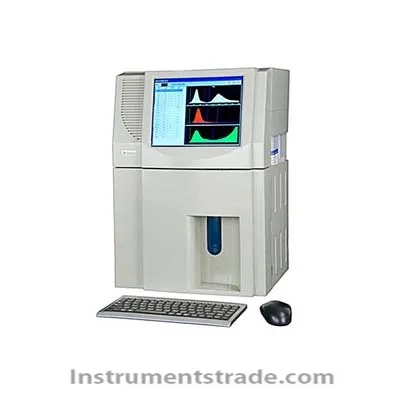

Product description: Working principle: electrical impedance counting, cyanide free SFT detection of hemoglobin Test parameters: White blood cells in three groups, providing accurate 23 parameters (including WBC RBC, PLT color histogram) Sample dosage: anticoagulant 9l predilute blood 20l Pre-dilution blood sample: equipped with built-in diluent, automatic injection of 1mL diluent through sampling needle; no need to add diluent manually, both to avoid manual error, but also to make the operation more convenient and standardized Working mode: dual channel testing Micropore size: WBC: 80um RBC/PLT:50um Working speed: automatic sample injection, detection speed 60 samples per hour Result storage: mainframe automatically stores more than 100000 samples all parameters (including histogram, history data management and query easier) Reference value settings: general, adult male, adult female, child, newborn, etc. Calibration mode: manual and automatic calibration Mode of command: overall quality control scheme, automatic drawing and printing of command chart Performance indicators: Precision r CV linear range WBC ≤2.0% 1-65×109/L RBC ≤1.5% 0.3-7×1012/L HGB ≤1.5% 20-240 g/L PLT ≤6.0% 20-750×109/L MCV ≤1.5% 80-100fL Plugging way: immersion and backflushing high pressure plugging, reflecting the superior anti-plugging design Classification: floating marker count Host controls: arm intelligent microprocessing counting and high-performance computer text management, display and print processing Data Analysis: intelligent Pulse programming Technology Display mode: 10.4 "Color large screen LCD I / O interface: standard mouse, keyboard interface, 2 USB interfaces, 1 parallel printer interface, 1 RS232 serial port, 1 VGA display interface Report printing: external serial port printer or USB, parallel interface universal printer (optional) Operation interface: all Chinese Windows XP operation interface, integrated Chinese report software, make patient information input, result display, query and report printed in the same display interface, simple operation, complete function; through mouse, Keyboard supports multiple online Fast Chinese input methods Environmental temperature: 15 ℃ / 30 ℃ Relative humidity: ≤ 80% Atmospheric pressure: 70kPa106kPa Power supply voltage: 220V ±22V + 50Hz ±1Hz Shape size: 325 × 370 × 545mm Weight: 15kg
Product description: Working principle: electrical impedance counting, cyanide free SFT detection of hemoglobin Test parameters: White blood cells in three groups, providing accurate 23 parameters (including WBC RBC, PLT color histogram) Sample dosage: anticoagulant 9l predilute blood 20l Pre-dilution blood sample: equipped with built-in diluent, automatic injection of 1mL diluent through sampling needle; no need to add diluent manually, both to avoid manual error, but also to make the operation more convenient and standardized Working mode: dual channel testing Micropore size: WBC: 80um RBC/PLT:50um Working speed: automatic sample injection, detection speed 60 samples per hour Result storage: mainframe automatically stores more than 100000 samples all parameters (including histogram, history data management and query easier) Reference value settings: general, adult male, adult female, child, newborn, etc. Calibration mode: manual and automatic calibration Mode of command: overall quality control scheme, automatic drawing and printing of command chart
