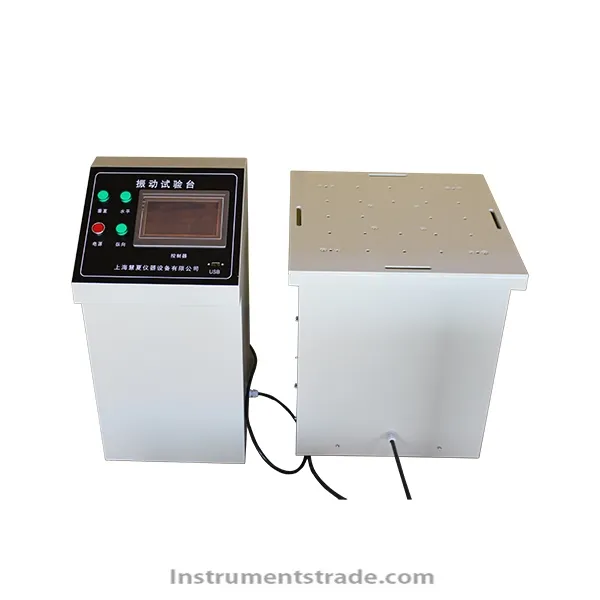

Six degree space vibration table Introduction
The six-degree space vibration table is used to simulate the environment of electricians, electronics, auto parts and other products and goods involved in transportation during transportation, and to test the vibration resistance of their products. The six-degree space vibration table realizes all the functions required for vibration testing: sine wave, frequency modulation, frequency sweep, programmable, frequency doubling, logarithm, maximum acceleration, amplitude modulation, time control, and full-featured computer control can be achieved by upgrading, simple acceleration / Constant amplitude.
Technical Parameters
Maximum test load (kg): 100
Frequency range (0.01Hz): 1Hz ~ 600Hz
Amplitude (adjustable range mmp-p): 0 ~ 5mm
Maximum acceleration: 20g
Vibration direction: vertical + horizontal + front and back
Frequency modulation function: any frequency within the range of 1-600HZ
Frequency sweep: 1-600HZ can be set arbitrarily, real standard frequency sweep back and forth
Programmable function: 1-600HZ, 1-15 segments, each segment can set frequency and time arbitrarily
Frequency doubling function (0.01Hz); 15-fold multiplier increase ① low to high frequency ② high to low frequency ③ low to high and then to low frequency / can be cycled
Logarithmic function (0.01Hz): ① down to up frequency ② up to down frequency ③ down to up then down frequency-3 modes logarithmic / recyclable
Vibration waveform: sine wave (half wave / full wave)
Time control: any time can be set (in seconds)
Precision: frequency can be displayed to 0.01Hz, precision is 0.1Hz
Power: 2.5Kw
Table size: L * H * W (cm) 50 * 1 * 50
Table size L * H * W (cm): vertical + horizontal + front and back (50 * 58 * 50)
Power supply voltage (V): 220V
Realized functions: sine wave, frequency modulation, frequency sweep, programmable, frequency doubling, logarithmic, time control
