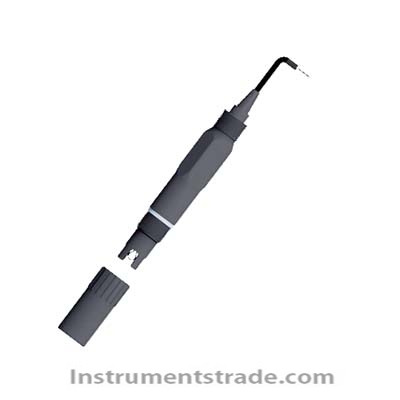

SHD-pH-1 PH detector Introduction: PH detector, built-in temperature sensor, can automatically/manually compensate for temperature, suitable for long-term online monitoring environment, not affected by transmission distance, high stability. Mainly used for monitoring municipal and industrial wastewater; Online monitoring of drinking water quality; Real time monitoring of ecological environment water quality; Monitoring of water quality in rivers, Hubo, and other areas; Coastal pollution monitoring; Monitoring of wastewater and recycled water quality; On site law enforcement. characteristic: 1. High stability; 2. High precision; 3. It has manual setting/automatic temperature compensation process temperature and calibration temperature. When the temperature electrode is damaged, it is converted from automatic temperature compensation to manual temperature compensation, and the test data can be verified online. Technical parameters: model: SHD-pH-1 Measurement range: 0-14pH resolving power: 0.01pH Measurement accuracy: ± 0.01pH Temperature measurement range: 0-60 ℃ Resolution: 0.1 ℃ Measurement accuracy: ± 0.3 ℃ Compensation mode: automatic/manual PH signal output: 4-20mA (adjustable/three wire system) Current accuracy: 1%FS Output load: less than 750 Ω Communication interface: RS485， Standard Modbus protocol Working voltage: 24V DC,12V DC,5V DC Working humidity: ＜90% Voltage endurance range: 0-3bar Shell material: PPS Sensitive membrane number: H1020 Process connection: G3/4 Electrical connection: straight out 5m signal line Electrode protective cover: available Protection level: IP68 Weight: 0.5kg Usage: Input based
Introduction: PH detector, built-in temperature sensor, can automatically/manually compensate for temperature, suitable for long-term online monitoring environment, not affected by transmission distance, high stability. Mainly used for monitoring municipal and industrial wastewater; Online monitoring of drinking water quality; Real time monitoring of ecological environment water quality; Monitoring of water quality in rivers, Hubo, and other areas; Coastal pollution monitoring; Monitoring of wastewater and recycled water quality; On site law enforcement.
