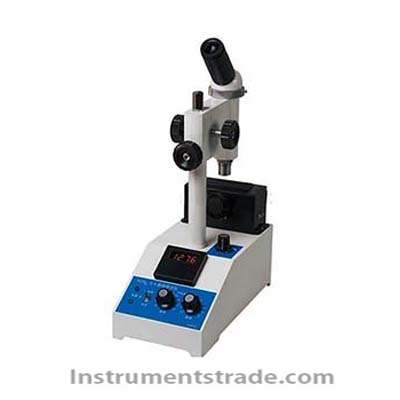

Introduction: The melting point of the substance is measured. Mainly used for pharmaceutical, chemical, textile, fuel, spices and other crystal organic compounds determination. Instruments used microscope observation method, either capillary method, but also with slide - cover glass method (hot table method) determination. Technical Parameters: Instrument Model: SGW X-4 Measuring range: room temperature ~ 320 ℃ Measurement method: Visual Measurement mode: capillary method, hot table method Minimum indication: 1 ℃ Repeatability: ≤ 200 ℃± 1 ℃,> 200 ± 2 ℃ Observation method: monocular microscope Magnifying glass multiples: 40 × Power: 220V ± 22V, 50Hz ± 1Hz Instrument size: 30mm × 22mm × 44mm Instrument net weight: 4.5kg
Introduction: The melting point of the substance is measured. Mainly used for pharmaceutical, chemical, textile, fuel, spices and other crystal organic compounds determination. Instruments used microscope observation method, either capillary method, but also with slide - cover glass method (hot table method) determination.
