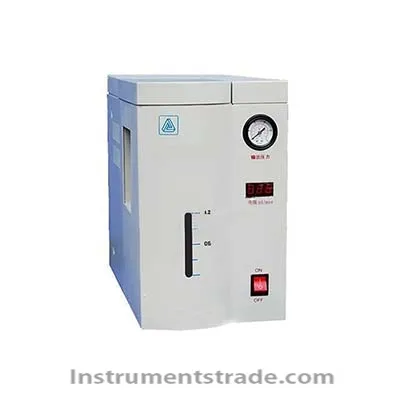

Introduction The instrument is mainly composed of electrolytic system, pressure control system, purification system and display system. Electrolytic hydrogen USES the most advanced membrane separation technology, the infrared electric feedback device and pressure control system composed of switch power supply, can make the number of hydrogen gas according to the needs of the output automatically adjust, maintain the stability of the output flow and pressure. Technical parameters 1, output flow rate of SGH - 300 : 0-300 ml/min;
SGH - 500 0-500 ml/min;
2, the output pressure: 0 ~ 0.4 Mpa (factory set to 0.4 Mpa) commonly
3, hydrogen purity: > 99.999%
4, the maximum power: SGH - 300, 150 w
SGH - 500, 180 w
(5), power supply: AC 220 + / - 10%;50 hz
(6), environment temperature: 5 to 40 ℃ Relative humidity: < 85%
No serious dust pollution of the environment
7, appearance size: 390 * 185 * 185 (L * W * H)
8, weight: 10 kg Features:
(1), alternative to high pressure hydrogen cylinder, make laboratory equipment, guarantee the security.
(2), the working process of automatic control, simple operation, maintenance is convenient.
(3), digital display production capacity, to facilitate observation instrument working state and fault judgment.
(4), long life, can be continuous or intermittent use, gas is stable, no attenuation.
(5), the overvoltage protection device, safe and reliable.
