SDK series water bath nitrogen blowing instrument

Product ID：SYCHDC024

Price: Please inquire PDF Format

Supply Ability:30SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberSDK series

Brand NameBEIJINGZHONGXINGWEIYE

Payment TermsT/T, paypal

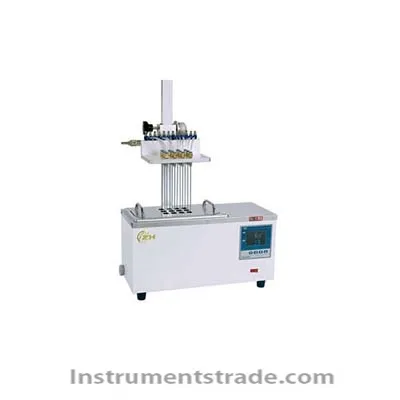

SDK series water bath nitrogen blowing instrument
Introduction
A water bath nitrogen blower is used for sample preparation in gas phase, liquid phase, and mass spectrometry. It uses internationally recognized techniques to concentrate the sample by blowing nitrogen into the surface of the heated sample. The method has the characteristics of convenient operation and easy control, and can quickly obtain the expected result. The technology uses solid phase extraction pretreatment technology instead of traditional liquid phase extraction and chromatography technology to quickly separate and purify samples. Concentration with a nitrogen blow instead of a conventional rotary evaporator greatly shortens the analysis time. Suitable for pesticide residue analysis, pharmaceutical drug testing, environmental analysis, bioanalysis, food and beverage applications.
Features
1. The height of the air chamber can be adjusted and lowered, and the operation is convenient.
2. Each air passage has an independent adjustment switch, which is convenient for flow adjustment and shutdown without wasting gas.
3. The test tube rack can conveniently remove or move the test tube into the water tank, and the height of the test tube rack can be adjusted.
4, the use of liquid crystal display intelligent temperature controller, with temperature control accuracy, automatic temperature control, over temperature alarm and other functions.
5. The SDK type inner liner is made of high-quality stainless steel and has a long service life and a four-corner arc transition for easy cleaning.
6, with a low liquid level protection function to prevent damage caused by dry burning.
Technical Parameters

model	SDK-12	SDK-24	SDK-36
Number of samples processed	12	24	36
Tube hole diameter (mm)	6~20
Temperature control range (°C)	室温+5~100
Timing range (min)	1~9999
Temperature control accuracy (°C)	≤±1
Display accuracy (°C)	±0.1
Heating power (W)	500
Power supply voltage (V)	220V 50Hz
Gas flow rate (L/min)	0~10
Dimensions (mm)	415255610

Introduction
A water bath nitrogen blower is used for sample preparation in gas phase, liquid phase, and mass spectrometry. It uses internationally recognized techniques to concentrate the sample by blowing nitrogen into the surface of the heated sample. The method has the characteristics of convenient operation and easy control, and can quickly obtain the expected result. The technology uses solid phase extraction pretreatment technology instead of traditional liquid phase extraction and chromatography technology to quickly separate and purify samples. Concentration with a nitrogen blow instead of a conventional rotary evaporator greatly shortens the analysis time. Suitable for pesticide residue analysis, pharmaceutical drug testing, environmental analysis, bioanalysis, food and beverage applications.
