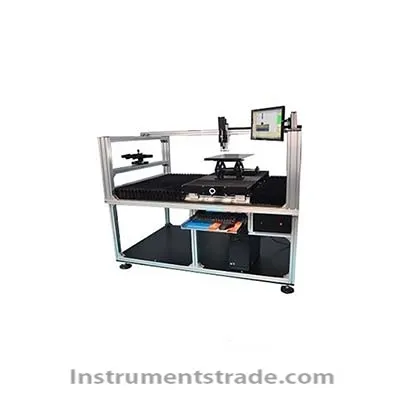

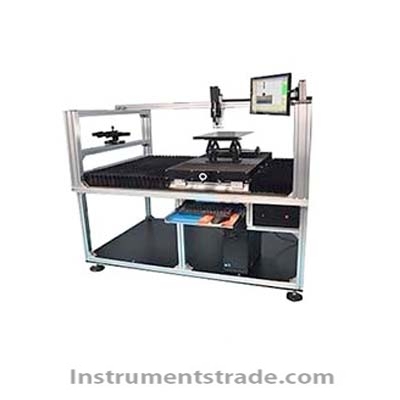

SDC-800 large platform optical contact angle measuring instrument Features
1. Professional-grade high-precision injection system, micro-measuring head + high-precision syringe
2, single-wavelength LED cold light source system, clearer imaging, while avoiding the evaporation of small droplets caused by extra heat.
3, using high-performance industrial cameras, high-definition lenses to ensure the best imaging results.
4, using USB2.0 standard interface, data transmission speed, high compatibility.
5, high-strength aluminum alloy structure, modular design concept, can be configured with a variety of commonly used measurement accessories.
6, the latest optimized contact angle analysis method, elliptical analysis method, more suitable for high angle contact angle.
7, user-friendly software interface, easy to operate, and quickly and intuitively read data effects.
8. Provide imported contact angle measurement calibration samples to ensure accurate results.
9. Independently developed integrated chip circuit control to ensure that the instrument operates in an optimal state.
10, a variety of data export function, measurement data one-click export experimental report.
Technical Parameters
Contact angle measurement range: 0-180°
Contact angle measurement accuracy: ±0.1°
Optical system: lens 0.7-4.5 × continuous zoom
Video system: video speed 25 images / sec
Contact angle measurement method: seat drop method
Contact angle analysis method: automatic ring fitting method, automatic elliptical law, manual bevel measurement method, surface measurement method, width and height measurement method, manual tangent method, dynamic measurement method
Surface energy measurement: Fowks method, OWRK method, ZismanPlot method, EOS method (optional)
Digital CMOS camera, video/replay, instant screenshot, video any movie single export
Work surface size: can be customized
Workbench mobile: customizable
Worktable up and down telescopic: can be customized
Sample size: 500mm (width) 500mm (can be customized)
Power and power: 220v/60hz
Instrument dimensions: can be customized
Features
1. Professional-grade high-precision injection system, micro-measuring head + high-precision syringe
2, single-wavelength LED cold light source system, clearer imaging, while avoiding the evaporation of small droplets caused by extra heat.
3, using high-performance industrial cameras, high-definition lenses to ensure the best imaging results.
4, using USB2.0 standard interface, data transmission speed, high compatibility.
5, high-strength aluminum alloy structure, modular design concept, can be configured with a variety of commonly used measurement accessories.
6, the latest optimized contact angle analysis method, elliptical analysis method, more suitable for high angle contact angle.
7, user-friendly software interface, easy to operate, and quickly and intuitively read data effects.
8. Provide imported contact angle measurement calibration samples to ensure accurate results.
9. Independently developed integrated chip circuit control to ensure that the instrument operates in an optimal state.
10, a variety of data export function, measurement data one-click export experimental report.
