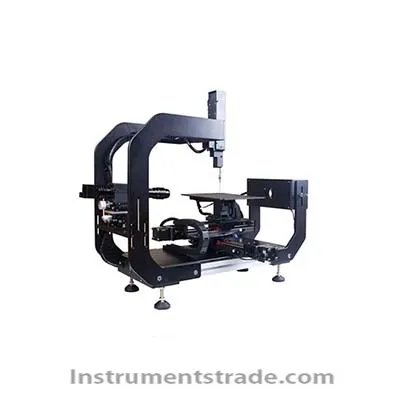

SDC-500 automatic contact angle measuring instrument Introduction
The instrument is manufactured by modern technology. The instrument adopts advanced dedicated CCD digital camera, double-resolution high-resolution zoom microscope and high-brightness LED background light source system. It can be moved with the three-dimensional sample table to move up and down, left and right, front and back. Achieve micro-injection and precise movement up and down, left and right. At the same time, the telescopic rod structure workbench is designed, which can adapt to the occasions where the thickness of different user materials is increased. The instrument frame can be adjusted according to the size of the model, which expands the scope of use of the instrument. The software is matched with the correction function. After multiple tests, the results can be saved in the same report at the same time, which allows the user to better control the material data. The instrument is beautiful in design, simple in operation and meets the needs of users. Suitable for users measuring contact angles in various industries.
Feature
Professional-grade high-precision automatic injection system with a minimum droplet control accuracy of 0.1μl
Micro-adjustable LED industrial grade cold light source system (lifetime above 20000H) for clearer imaging while avoiding the evaporation of small droplets caused by extra heat
The high-performance Japanese imported industrial movement, distortion-free telecentric lens ensures the best imaging results.
Adopt USB2.0 standard interface, fast data transmission and high compatibility
High-strength aerospace aluminum alloy structure, modular design concept, configurable various common measuring accessories
Japanese original high-precision XYZ three-way motion module, the test is more stable and more accurate
Independently developed integrated chip circuit control to ensure that the instrument operates at its best
Multiple auxiliary modules are selected to meet more external test conditions
The first domestic contact angle measurement calibration sample imported from Germany to ensure accurate measurement results
Optical system for tilt adjustment for ultra low angle measurement and hydrophobic material measurement
The most professional contact angle analysis method is more suitable for a variety of material contact angle measurement
Powerful intelligent database management: can input multiple sets of product parameters and measurement parameters, can view and retrieve tests at any time, and perform one-button multi-point measurement
The software automatically triggers camera and calculation, fully automatic multi-point measurement, and more avoids human error.
High-speed measurement calculation, more suitable for the production and application of production lines or a large number of test products, improve work efficiency
Surface contact angle analysis module for simpler operation and more accurate results
Video quick test data, continuous test into contact angle morphological changes
Intelligent software operation: [automatically find test points - automatic drip - automatically find the baseline - automatic fitting measurement] - one-button control
Technical Parameters
Contact angle measurement range: 0-180
Contact angle measurement accuracy: ±0.10
Table interface tension measurement range: 0-1000 mN/m; measurement accuracy: 0.01 mN/m
High-precision automatic drip system: high-precision industrial micro-injection pump; drip accuracy: 0. 1μl
Contact angle high precision instrument calibration sheet: Germany imported contact angle angle calibration standard sheet 3°5°8° 60°90°120°115°
Contact angle professional measurement methods: sessile drop; pendant drop; lamella method; Captive bubble method; wetted fiber; Sessle fiber drop
Mainframe dimensions: 900mm (length) * 380mm (width) * 670mm (height)
Host net weight: 25KG
Work surface size: 250mm*200mm
Fully automatic mobile module: 30mm (upper and lower) * 220mm (left and right) * 220mm (front and rear)
Maximum sample stage size: 16 inches
Injection pump moving module: ±30mm up and down ±15mm
Industrial lens movement: 180mm front and rear (fine adjustment 3mm)
Top view method: ±10°, accuracy 0.01°
Industrial lens: 0.7X *-4.5X high-definition telecentric continuous zoom zoom microscope
CCD: SONY imported high-speed industrial grade chip; 25 frames / 60 frames / 150 frames / 300 frames / second
The lens angle can be debugged: looking up, looking up, looking down at multiple viewing angles
Light source: LED can adjust the blue tone industrial grade cold light source; the service life can be up to 5,000 hours
Power and power: 220V / 60HZ
