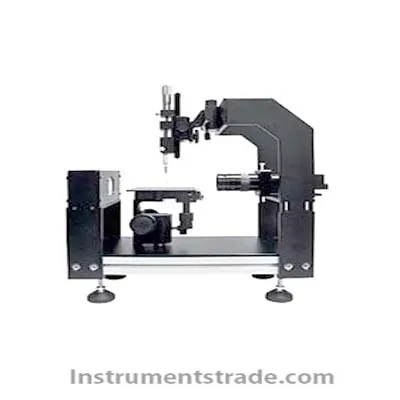

SDC-100 contact angle measuring instrument Introduction
The instrument is manufactured by modern technology. The instrument adopts advanced dedicated CCD digital camera, double-resolution high-resolution zoom microscope and high-brightness LED background light source system. It can be moved with the three-dimensional sample table to move up and down, left and right, front and back. Achieve micro-injection and precise movement up and down, left and right. At the same time, the telescopic rod structure workbench is designed, which can adapt to the occasions where the thickness of different user materials is increased. The instrument frame can be adjusted according to the size of the model, which expands the scope of use of the instrument. The software is matched with the correction function. After multiple tests, the results can be saved in the same report at the same time, which allows the user to better control the material data. The instrument is beautiful in design, simple in operation and meets the needs of users. Suitable for users measuring contact angles in various industries.
Feature
1. Adjustable single-wavelength industrial-grade LED light source; the image is clearer; the service life can reach 15000H or more.
2, using high-performance Japanese imported movement to ensure the best imaging results.
3, using USB2.0 standard interface, data transmission speed, high compatibility
4, high-strength aviation aluminum alloy structure, modular design concept, can be configured with various commonly used measuring accessories
5. The first domestic contact angle measurement calibration sample imported from Germany to ensure accurate measurement results (optional)
6, the most professional contact angle analysis method, more suitable for a variety of material contact angle measurement
7, using the international leading calculation method, can automatically identify the baseline and contour, no one is the error
8, high-speed automatic operation measurement, and intuitive reading of data results
9, surface contact angle analysis module, simpler operation, more accurate results
10, video fast test data, continuous test into contact angle morphology changes
11, a variety of data export function, measurement data one-click export experimental report
Technical Parameters
Contact angle measurement range: 0-180 degrees
Contact angle measurement accuracy: ±0.10
High-precision drip system: differential head + blue core syringe; drip accuracy 0.5μl
Contact angle high precision instrument calibration sheet: Germany imported contact angle angle calibration standard sheet 3°5°8° small angle calibration sheet, 60°90°120°115° large angle calibration sheet
Contact angle tester professional measurement method: sessile drop; lamella method; Captive bubble method; wetted fiber; sessle fiber drop ;
Mainframe dimensions: 360mm (width) * 550mm (length) * 450mm (height)
Host net weight: 11KG
Work surface size: 120mm*150mm
Workbench movement: up and down 50mm; left and right 50mm; front and rear 30mm
Maximum sample table size: 10 inches
Injector movement: up and down 100mm; left and right 100mm
Industrial lens movement: 180mm front and rear (fine adjustment 3mm)
Industrial lens: 0.7X *-4.5X HD continuous zoom microscope
CCD: Original imported industrial grade chip; 25 frames / sec
Lens angle: head-up
Light source: adjustable single wavelength industrial grade LED light source; service life of over 5,000 hours
Power and power: 220V / 60HZ
